Operation
DeLaval milking point controller MPCII
94381001.pdf
2006-07-20
F338
Auto-forced high vacuum delay time
60 sec (15-120)
An explanation of the above functions under
F62
and
F63
will follow on the following
pages!

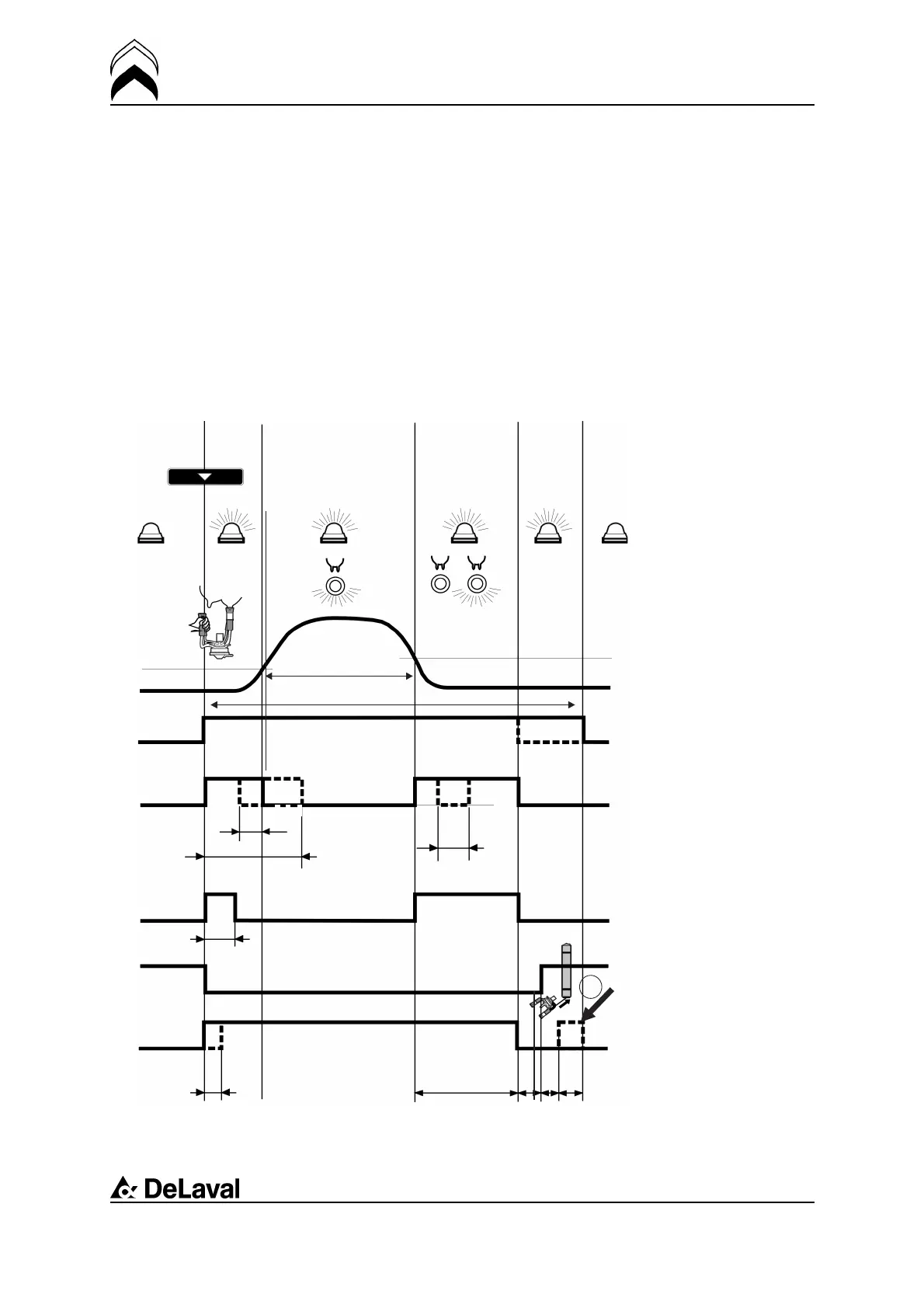

Normal milking
A
H
F
E
E
G
1
B C D
2
13
4
11
12
13
6
5
5.1
9
10
7
8
Start
ON
OFF
Low
High
Low
High
Activated
Not activated
Open
Closed
70(94)
77
79
Table of Contents
Table of Contents
3
Delaval Milking Point Controller MPCII
9
Product Data
9
Article Number
9
Description
9
Technical Data
10
MPCII Package ( 92850080 )
10
Bracket Package ( 98659380 )
10
External Connections
11
MPCII Connections
12
Mpcii/Alfadast
13
Installation
13
MPCII Connections
14
MPCII with Alfadast
14
Mpcii/Herringbone
17
Installation
17
MPCII Connections
17
Gate Definitions
18
Gate Valves
18
Gate Switches
19
MPCII with MM15 and Basic Functions
20
MPCII with MM15 and Gate Valve and Gate Button
21
MPCII with MM15 and Gate Valve or Gate Switch
22
MPCII with FI2
23
MPCII with MM25 or FI5
24
MPCII Addresses
25
Mpcii/In-Parlour Feeding
27
Installation
27
MPCII Connections
28
MPCII with Electrically Operated In-Parlour Feeding
28
MPCII with Vacuum Operated In-Parlour Feeding
29
Mpcii/Midiline
31
Installation
31
MPCII Connections
31
MPCII Facing Exit
31
MPCII Facing Entrance
32
MPCII with Basic Functions
33
MPCII with Gate Valve or Gate Switch
34
MPCII with Vacuum/Electrically Operated In-Parlour Feeding
35
Mpcii/Rotary
37
Installation
37
MPCII Connections
37
MPCII Addresses
37
MPCII each Place
38
MPCII Special - Paralell Rotary
39
Special MPCII HBR
40
MPCII In-Place ID
41
MPCII Special Alarm Signals
42
Mpcii/Tandem
43
Installation
43
MPCII Connections
43
MPCII each Box
44
MPCII Special
45
Mpcii/Parallel
47
Installation
47
MPCII Connections
47
Gate Definitions
48
Gate Valves
48
Gate Switches
49
MPCII with MM15 and Basic Functions
50
MPCII with MM15 and Gate Valve and Gate Button
51
MPCII with MM15 and Gate Valve or Gate Switch
52
MPCII with FI2
54
MPCII with MM25 or FI5
55
MPCII Addresses
56
Delaval Milking Point Controller MPCII
57
Operation
57
Mode Description
57
Display
58
Key Pads
58
Numerical Key Pad
60
F Key
60
Numeral Keys
60
Enter Key
61
Escape
61
Display
61
Command Key Pad
61
Show Cow Number
61
Set or Change Remind Code/Status
61
Start/End Milking
62
Force Low to High Vacuum
62
Manual Control
63
Acknowledge/Override
63
Open/Close Gate
63
Remove Cluster
63
Release Cluster
64
Remote Lamp
64
Status Indications
64
Don't Milk
64
Dump Milk
64
Treat Cow
65
Separate Cow
65
Feeding Alarm
65
Low Yield
65
Forced Low to High Vacuum
65
Manual Control
65
Remind Codes
66
Milk Phase
66
Communication Interrupted
66
Functions
66
F0 - Memory Lock
66
F1 - Go to Milking Mode
66
F2 - Go to Standby Mode
67
F3 - Milk Yield
67
F4 - Local Confirm
67
F5 - Confirm a Row
67
F6 - Cow Number/Milk Yield
67
F7 - Show Group Number
68
F8 - Deactivates Retraction
68
F9 - Open Memory
68
F11 - Transponder / Group Number
68
F13 - Calving Date Read/Write Function
69
F21 - Ration Data Read/Write Function
69
No Available Data
70
F22 - Consumed Feed Read Only
70
F30 - Milking Summary
71
F31 - Present Milking Read Only
71
F32 - Today's and Yesterday's Milk Yields Read/Write Function
72
F39 - Expected Milk Yield Read Only
72
F43 - Show Last Transponder Read Only
73
F45 - Breeding Status on MPCII
73
F62 - General Parameters
74
F63 - General Parameters
76
Normal Milking
78
F62 - Options
79
F63 - Limits, Timers, and Options
80
F64 - High Vacuum Delay
82
F71 - Go to Milking Mode
82
F72 - Go to Standby Mode
82
F75 - Local Mode
83
F76 - Test Mode
83
F78 - Configuration Check
84
F79 - Show Mpcii's Address
84
F82 - Local Cleaning Mode
85
F83 - Deactivate Entrance Photocell
85
F84 - Open/Close Main Gates
86
F85 - no more Cows
86
F86 - Exit Blocked
86
F87 - Water Test
87
F88 - Calibration
88
F89 - Check Calibration
88
F91 - Set Default Parameters
88
F94 - Liner Data
88
F95 - Reset Software
89
F96 - Shows the Application Programs Information
89
F97 - BOOT Version
90
F98 - Application Version
90
F100 - Cow Not Ready Milked
90
F101 - Stop of Platform
90
F371-F374 - Cow Status
91
F371 - Do Not Milk Status
93
F442 - Calibration Data
93
F611 - Show Time
94
F443 - Calibration Start
94
F444 - Stop Dispensing
94
F449 - Calibration Start One Side
94
Stop Feeding
94
F840 - Opens All Gates
95
F901 - Milk Meter Offset
95
New Feature on the MPCII
95
Service
99
Change of MPCII to a MPCII
99
Troubleshooting
