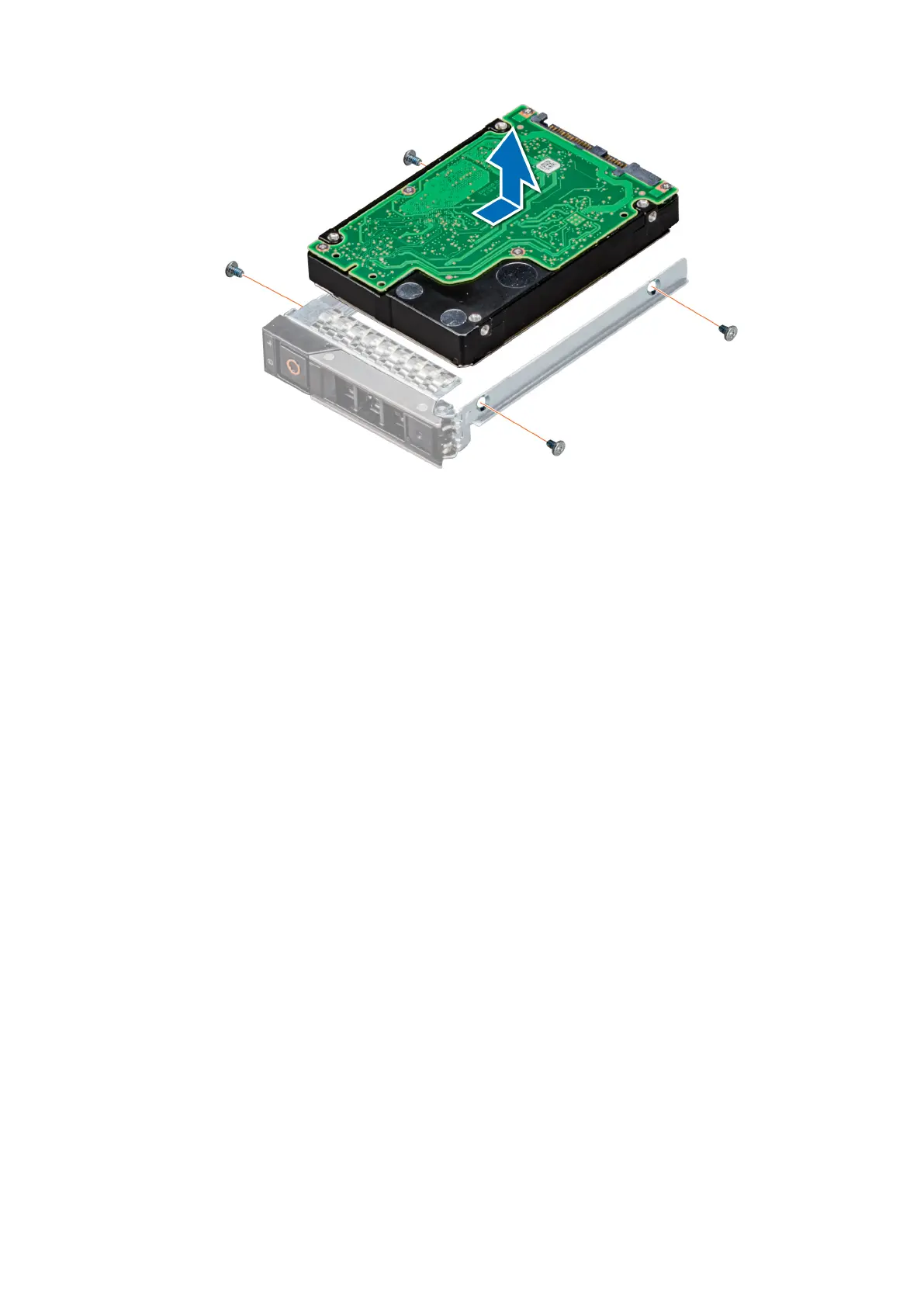

Figure 24. Removing a drive from drive carrier
Next steps
1. Replace the drive into the drive carrier.
Installing a drive into drive carrier
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 16
Steps
1. Insert the drive into the drive carrier, with the connector end of the drive towards the back of the carrier.
2. Align the screw holes on the drive with the screw holes on the drive carrier.
3. Using the Phillips #1 screwdriver, replace the screws to secure the drive to the drive carrier.
28
Installing and removing system components
