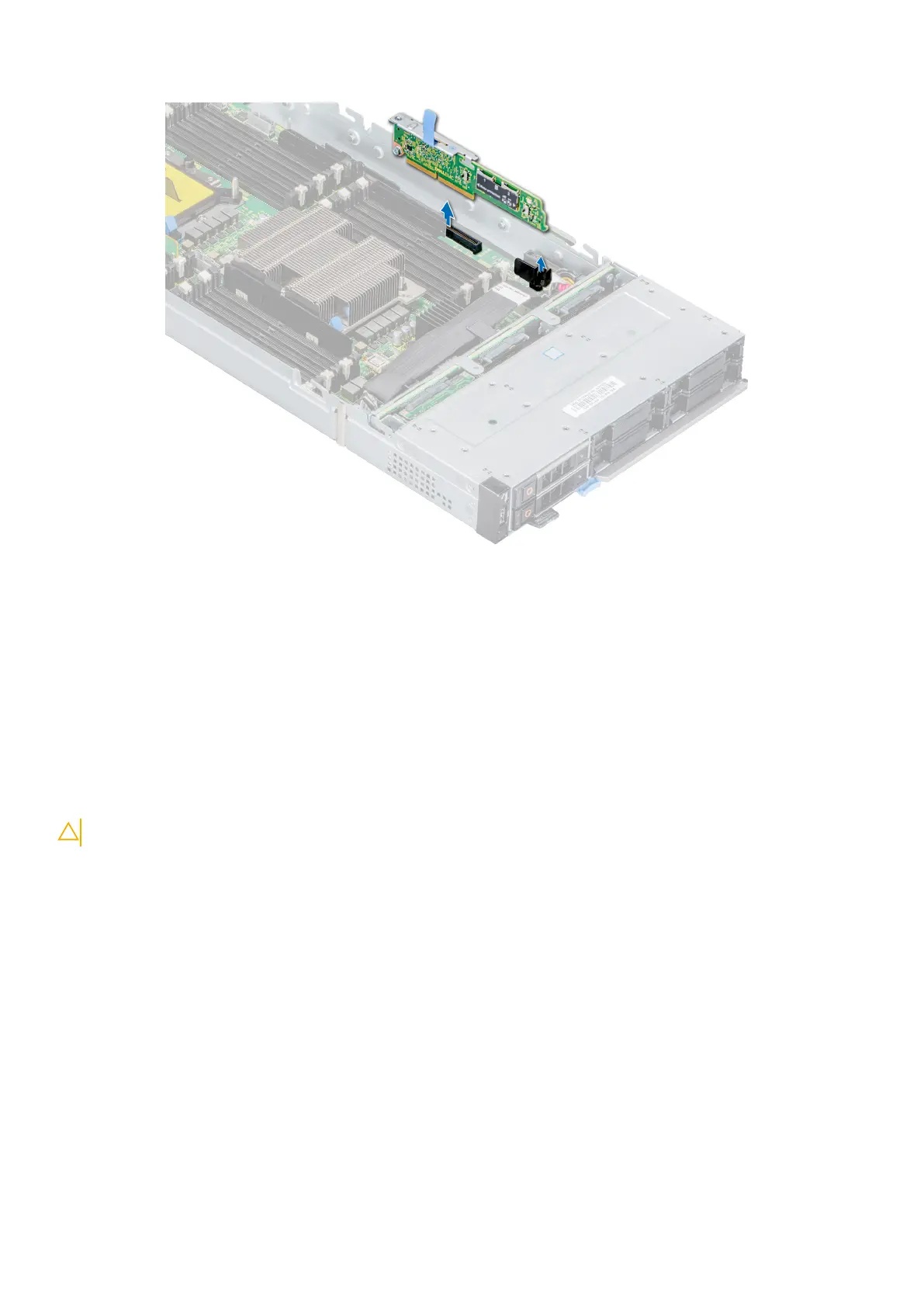

Figure 66. Removing the IDSDM card
Next steps
Install the IDSDM card.
Installing the IDSDM card
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your sled on page 17.
CAUTION: To prevent damage to the IDSDM card, you must hold the card only by its edges.
Steps
1. Locate the IDSDM card connector on the system board. To locate IDSDM connector, see the system board jumpers and
connectors section.
2. Align the IDSDM card with the connector on the system board.
3. Press the IDSDM card until it is firmly seated on the system board.
68
Installing and removing system components
