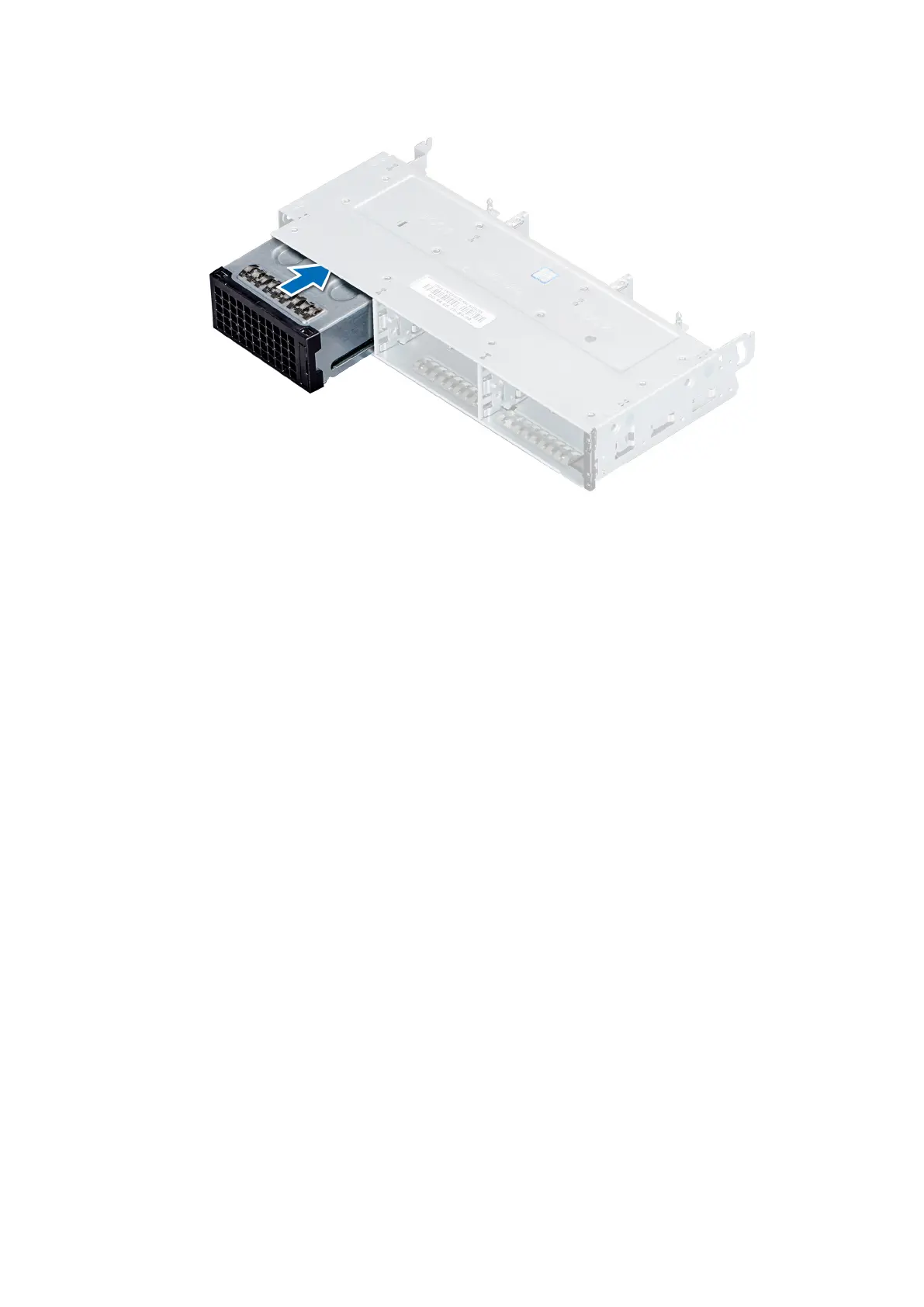

Figure 43. Installing the BBU
3. Connect the BBU cables to the connector on the system board.
Next steps
1. Follow the procedure listed in the After working inside your sled.
2. Replace the drive carrier or a drive blank.
Removing the BBU from the BBU cage
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in the Before working inside your sled.
3. Remove the BBU module.
Steps
1. Using a Phillips #1 screwdriver, loosen the captive screw securing the BBU to the BBU cage.
2. Lift and slide the BBU out of the BBU cage.
40
Installing and removing system components
