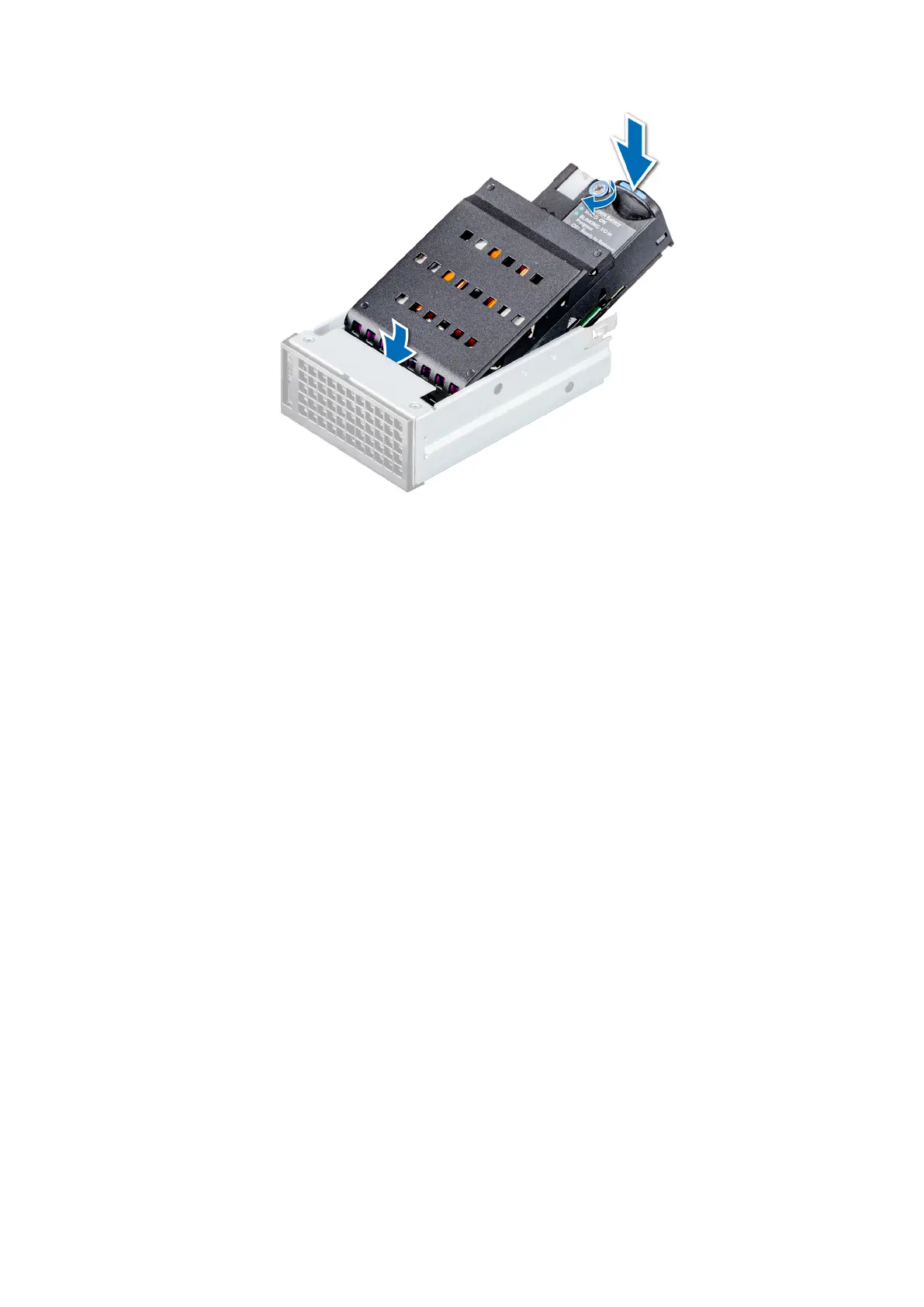

Figure 45. Installing the BBU into the BBU cage
Next steps
1. Install the BBU module.
Control panel
The control panel allows you to manually control the inputs to the sled.
Removing the control panel
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside the sled.
3. Remove the drives.
4. Remove the drive cage.
Steps
1. Pull the blue strap to disconnect the control panel cable connected to the system board.
2. Using a Phillips #1 screwdriver, remove the screws that secure the control panel to the system.
3. Slide the control panel out of the system.
42
Installing and removing system components
