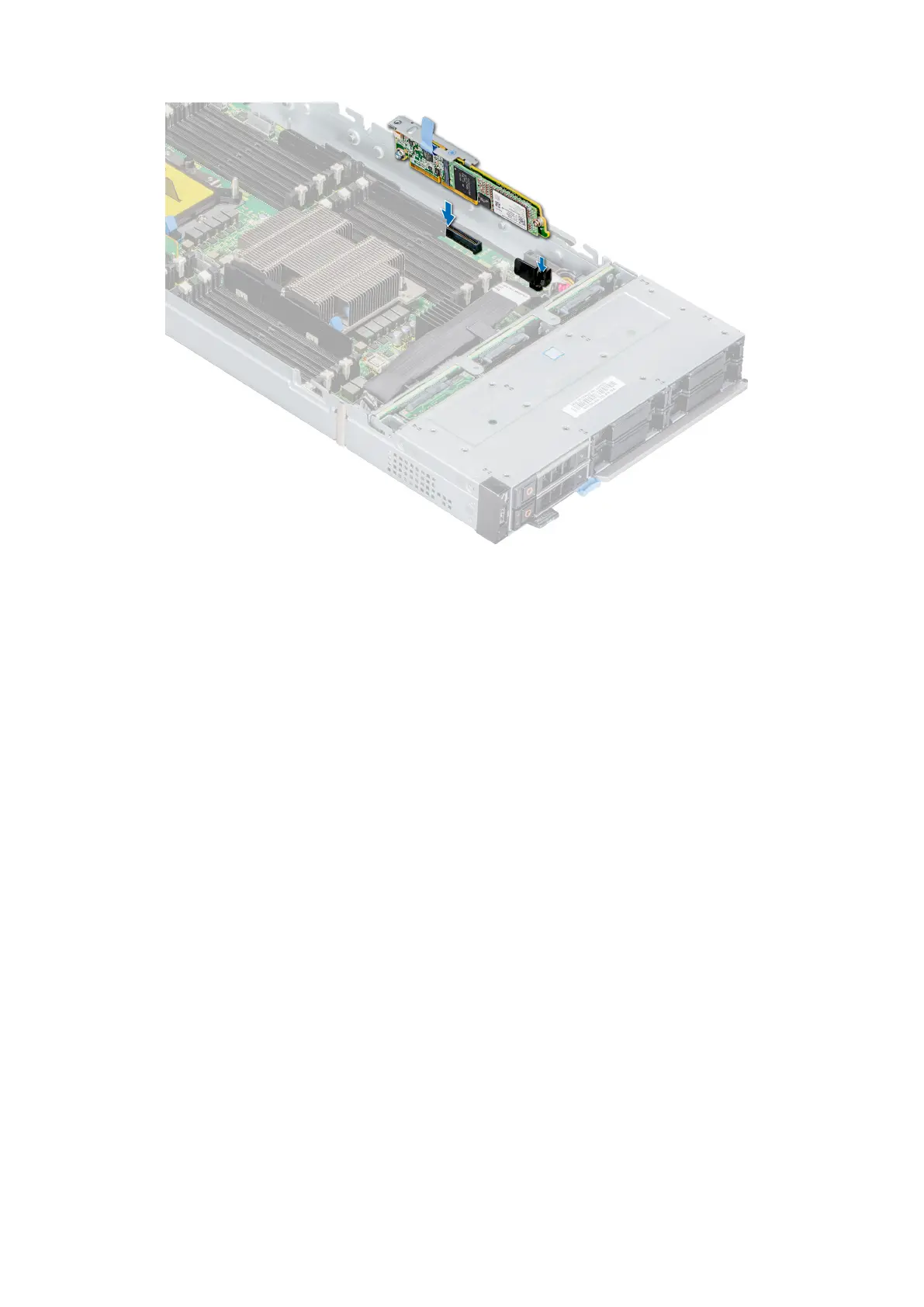

Figure 71. Installing the M.2 boss module
Next steps
Follow the procedure listed in After working inside your sled.
Removing the M.2 BOSS card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your sled on page 17.
3. Remove the M.2 BOSS card.
Steps
1. Using the Phillips #1 screwdriver, remove the screw on the M.2 BOSS module.
2. Pull the card out of the connector, and lift the card away from the module.
Installing and removing system components
73
