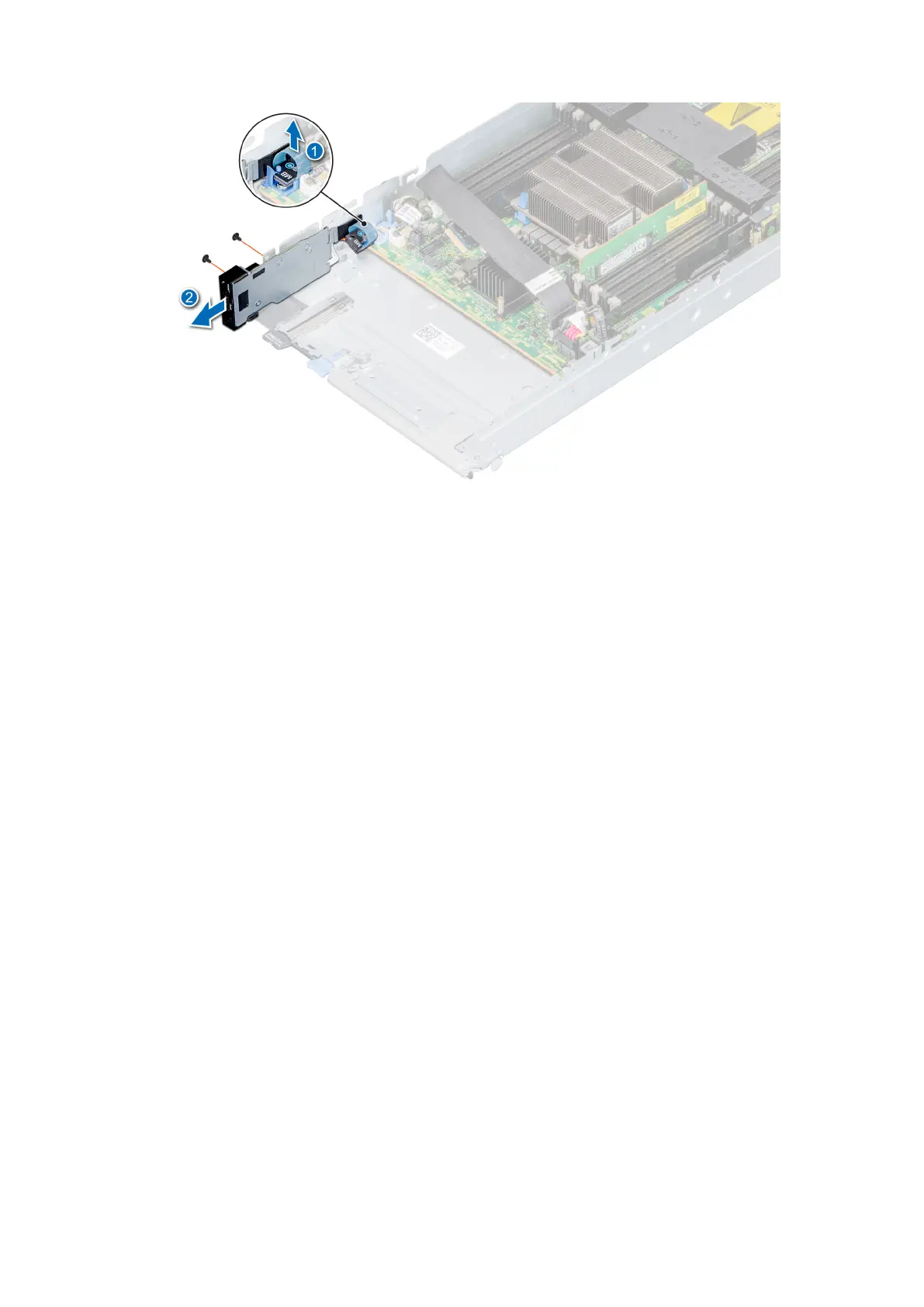

Figure 46. Removing the control panel
Next steps
1. Install the control panel.
Installing the control panel
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your sled.
Steps
1. Align control panel with the slots on the system and slide it in.
2. Connect the control panel cable to the connector on the system board.
3. Using a Phillips #1 screwdriver, secure the control panel to the system with the screws.
Installing and removing system components
43
