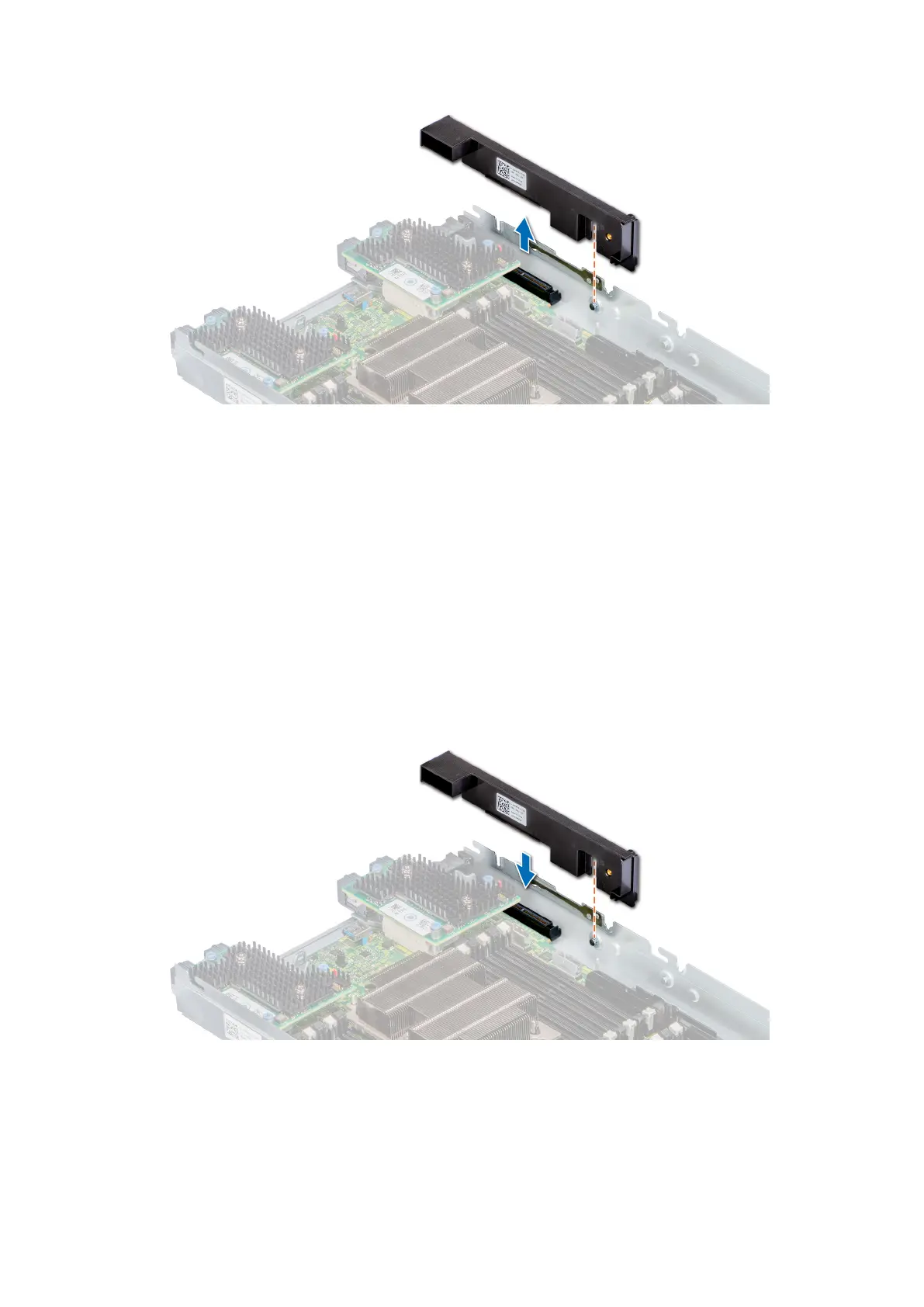

Figure 78. Removing the mini Mezzanine card blank
Next steps
1. Follow the procedure listed in After working inside your sled on page 17.
Installing the mini Mezzanine card blank
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside the sled.
Steps
Align the guiding groove of the card on the slot and push down to insert the mini Mezzanine blank to the system board.
Figure 79. Installing the mini Mezzanine card blank
Next steps
Follow the procedure listed in After working inside your sled on page 17.
80
Installing and removing system components
