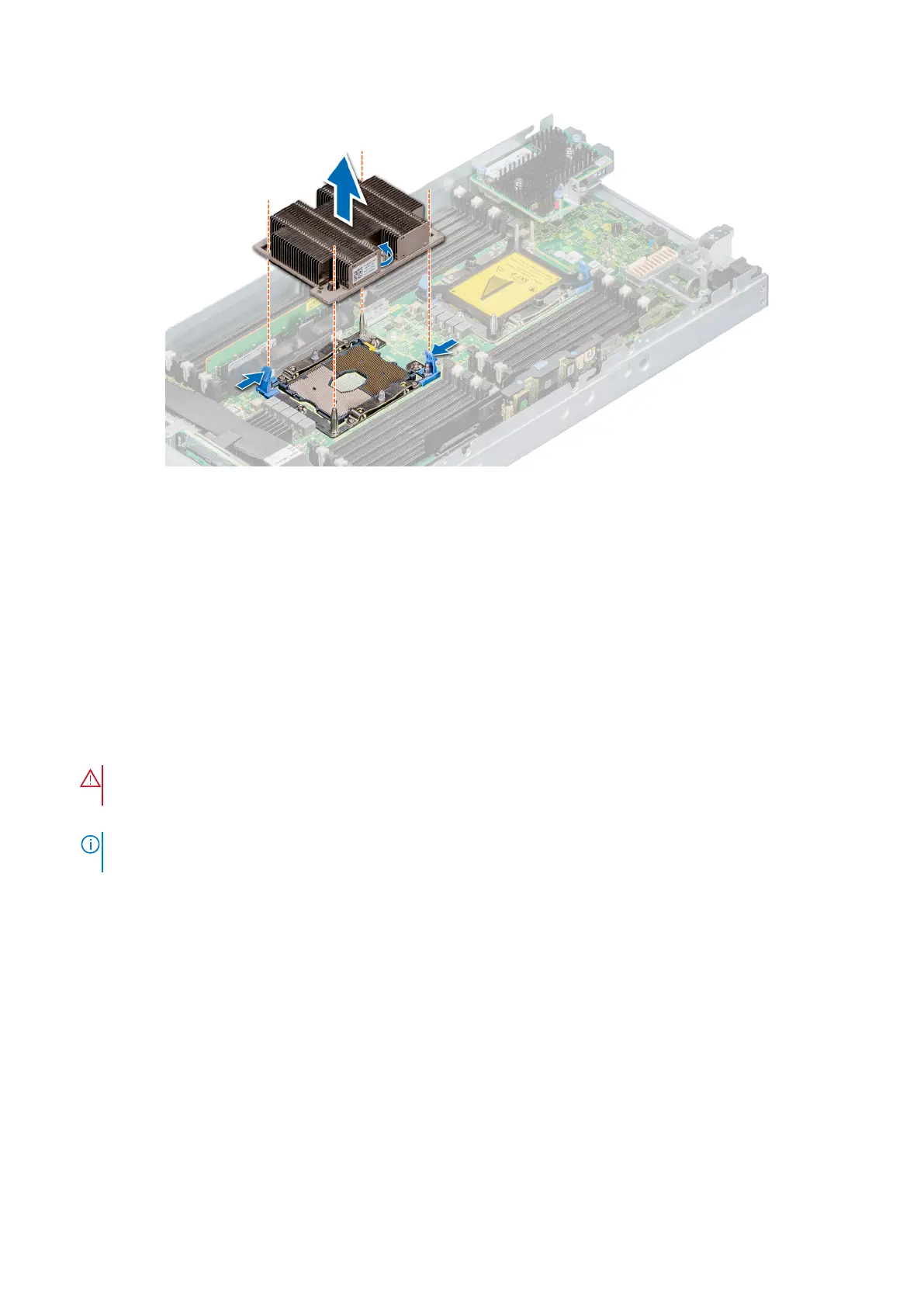

Figure 51. Removing the processor and heat sink module ( PHM )
Next steps
1. Install the processor and heat sink module.
Removing the processor from the processor and heat sink module
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your sled.
3. Remove the air shroud.
4. Remove the processor and heat sink module
WARNING:
The heat sink may be hot to touch for some time after the system has been powered down. Allow
the heat sink to cool before removing it.
.
NOTE:
This procedure is only needed when replacing a processor or heat sink. This is not needed when replacing system
board.
Steps
1. Place the heat sink with the processor side facing up.
2. Insert a flat blade screwdriver into the release slot marked with a yellow label. Twist (do not pry) the screwdriver to break
the thermal paste seal.
3. Push the retaining clips on the processor bracket to unlock the bracket from the heat sink.
56
Installing and removing system components
