Dell EMC PowerEdge MX740c - Installing the M.2 BOSS Module

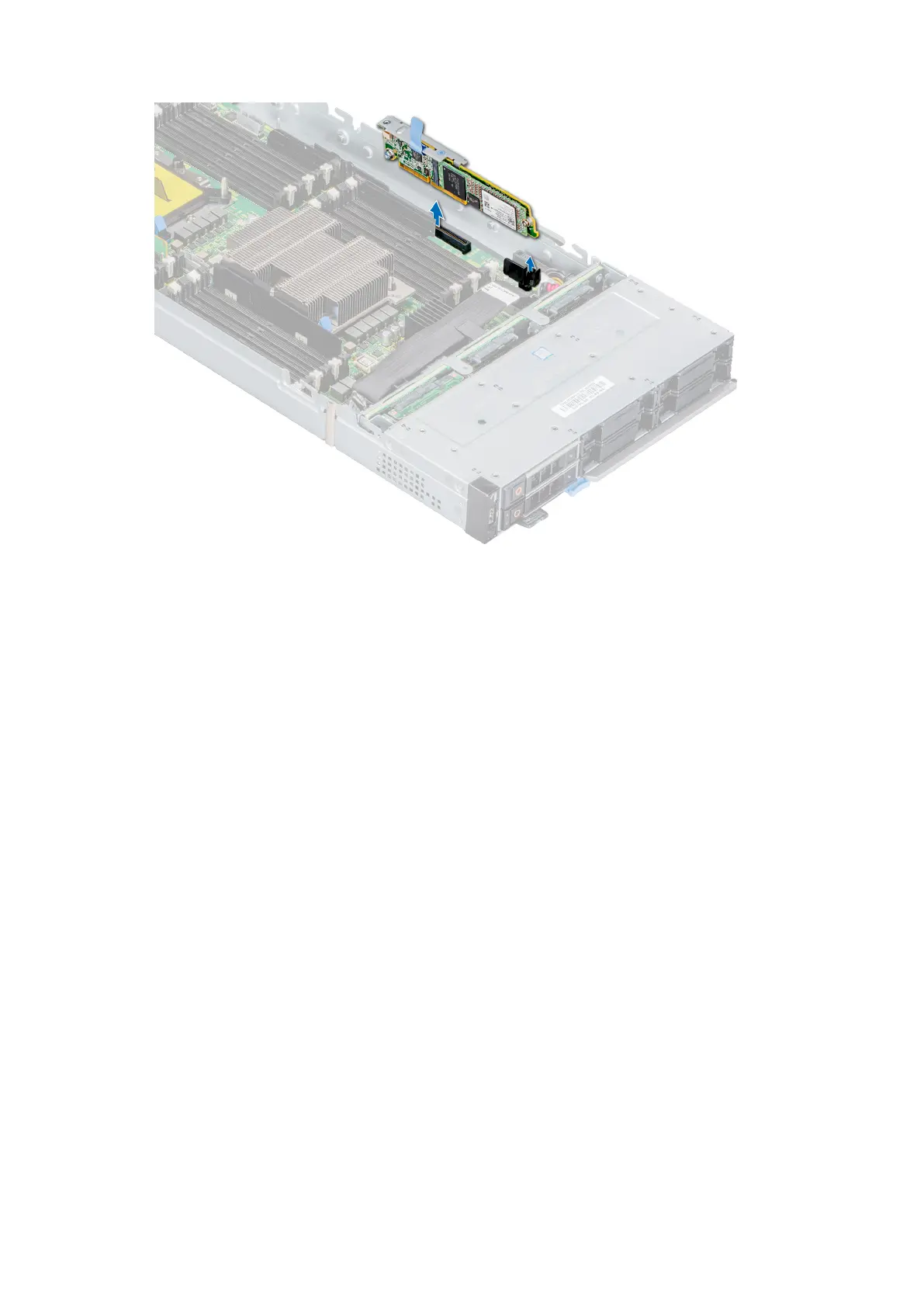

Figure 70. Removing the M.2 BOSS module
Next steps
1. Install the M.2 BOSS module.
Installing the M.2 BOSS module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 16.
2. Follow the procedure listed in the Before working inside your sled on page 17.
Steps
1. Align the M.2 BOSS module connector with the connectors on the system board and the guide on the M.2 BOSS module
with the guiding slot on the system board.
2. Press the touch point on the M.2 BOSS module until it is firmly seated.
