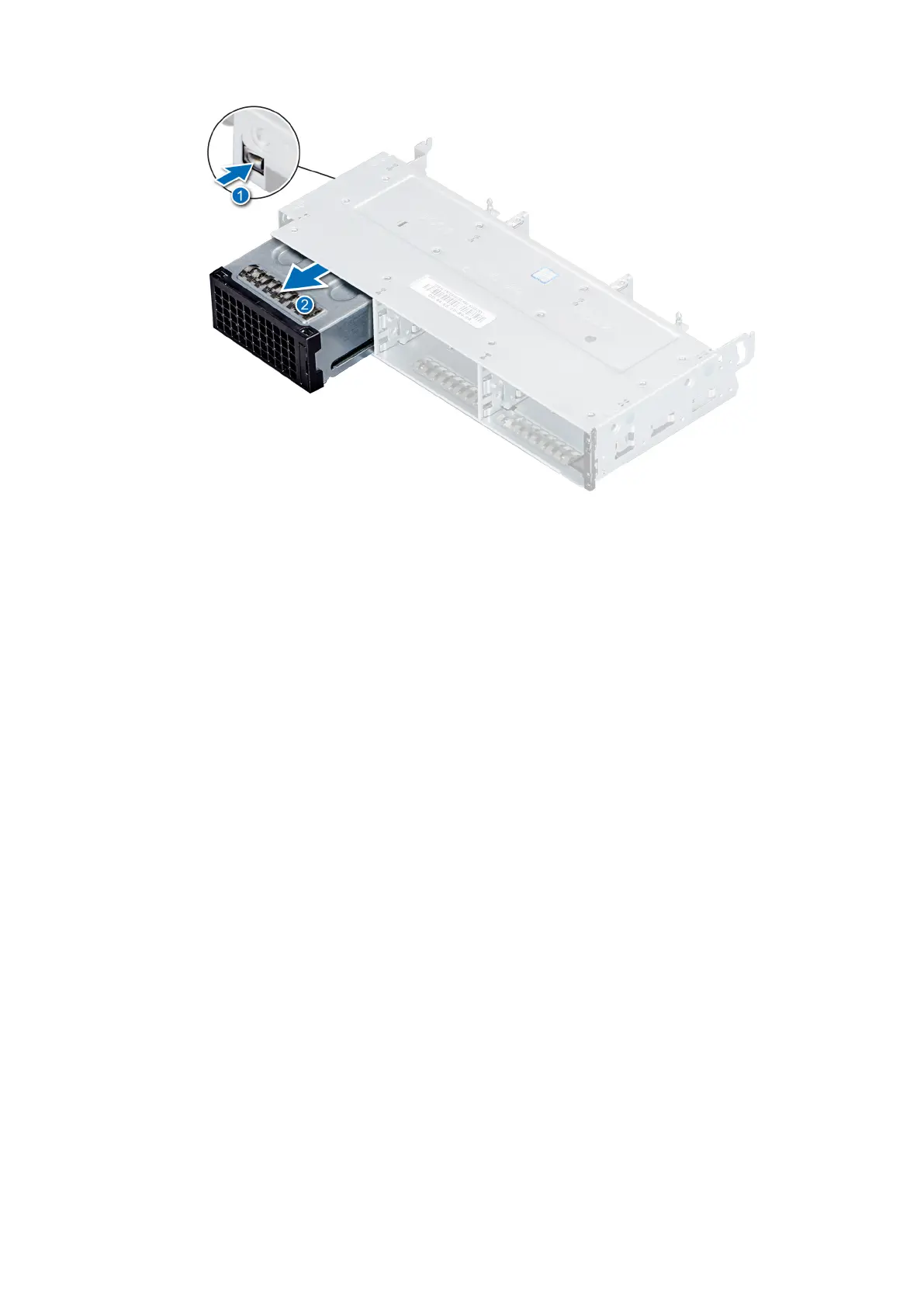

Figure 42. Removing the BBU module
Next steps
1. Replace the BBU in the cage.
2. Replace the BBU module.
Installing the battery backup unit
Prerequisites
1. Follow the safety guidelines listed in Safety Instructions.
2. Follow the procedure listed in Before working inside your sled on page 17.
3. Install the BBU into the BBU cage.
4. Install the drive cage.
5. Install the backplane.
Steps
1. Route the cable on the battery backup unit (BBU) through the front end of the drive cage.
2. Align and slide the BBU until it firmly locks in place with the drive cage.
Installing and removing system components
39
