Dell EMC PowerEdge MX740c User Manual

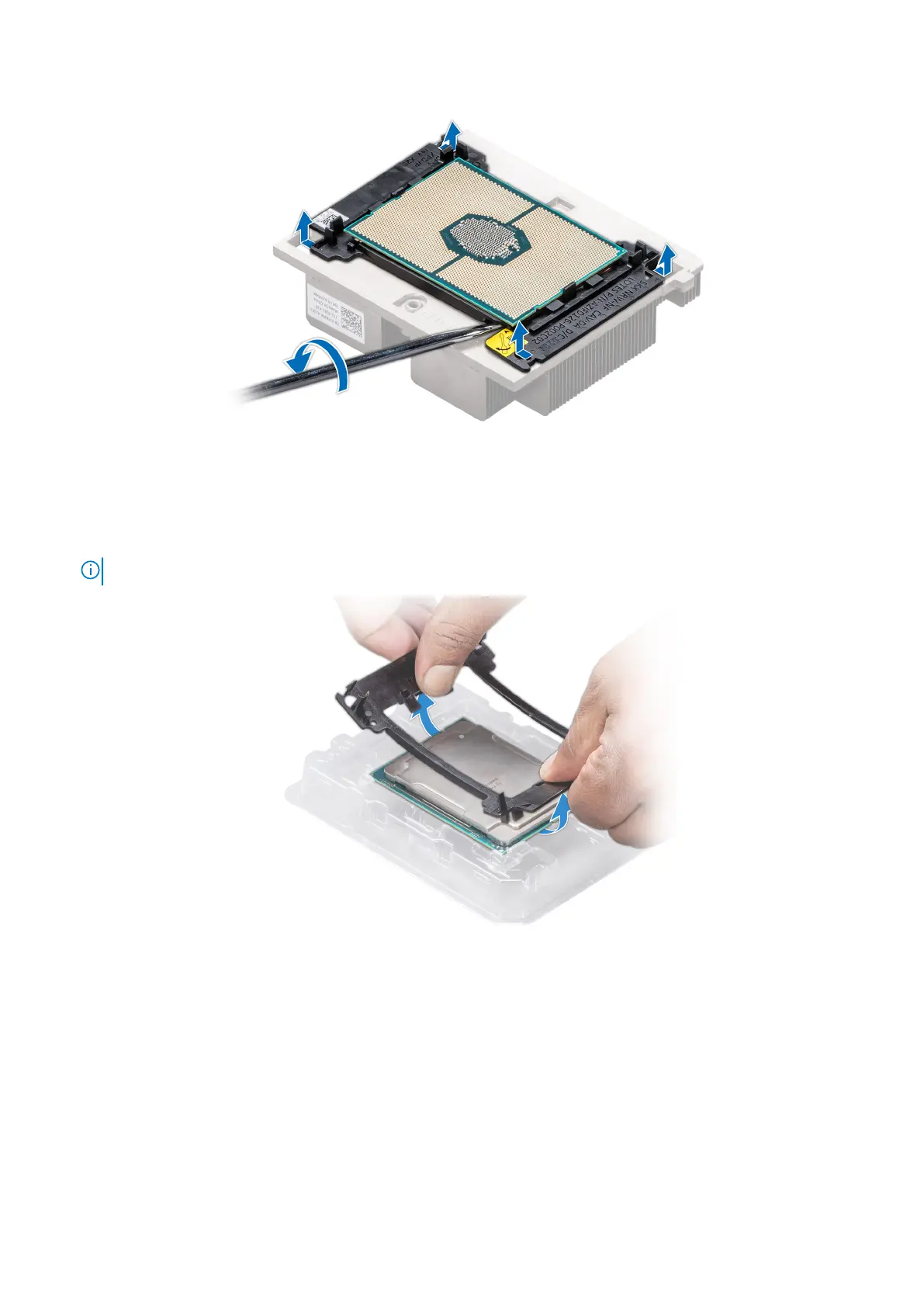

Figure 52. Loosening the processor bracket
4. Lift the bracket and the processor away from the heat sink, and place the processor connector side down on the processor
tray.
5. Flex the outer edges of the bracket to release the bracket from the processor.
NOTE: Ensure that the processor and the bracket are placed in the tray after you remove the heat sink.
Figure 53. Removing the processor bracket
Next steps
1. Install the processor into the processor and heat sink module.
Installing the processor into a processor and heat sink module
Prerequisites
1. Follow the safety guidelines listed in Safety instructions on page 16.
Installing and removing system components
57

Dell EMC PowerEdge MX740c Specifications

General

Max Processors	2
Form Factor	Modular
Processor	Up to 2nd Generation Intel Xeon Scalable processors
Storage	Up to 6 x 2.5" SAS/SATA (HDD/SSD)
RAID Support	HBA330
Network Options	2 x 25GbE
Management	iDRAC9 with Lifecycle Controller
