Dell Latitude E6220 - Wireless Local Area Network (WLAN) Card; Removing the Wireless Local Access Network (WLAN) Card

10
Wireless Local Area Network
(WLAN) Card
Removing The Wireless Local Access Network (WLAN) Card
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.

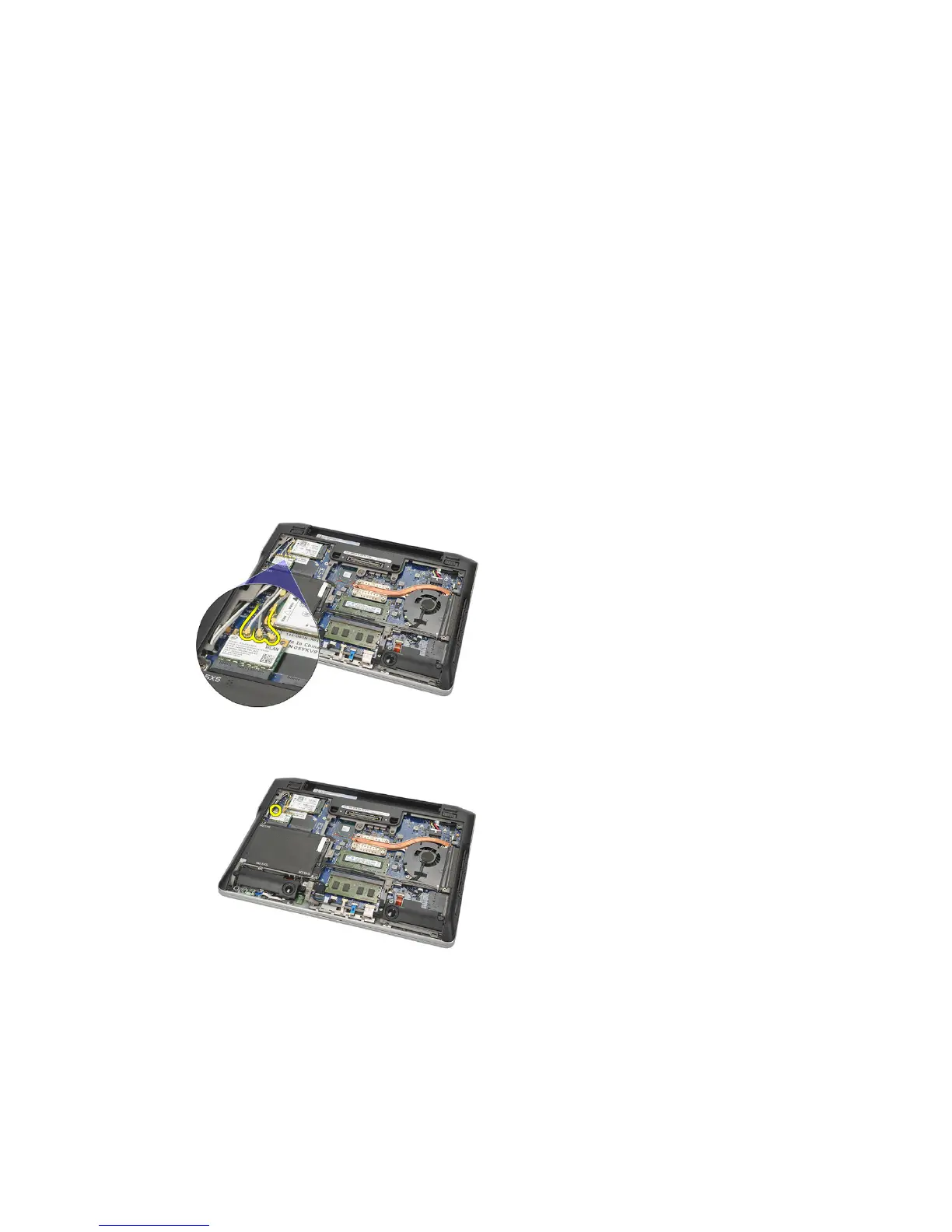

4. Disconnect the antenna cables from the WLAN card.
NOTE: The WLAN antenna cables are solid colors while the WWAN antenna cables
are striped.
5. Remove the screw that secures the WLAN card to the computer.
6. Remove the WLAN card from the computer.
