20 Wireless Switch
Removing The Wireless Switch
1. Follow the procedures in Before Working On Your Computer.
2. Remove the secure digital (SD) card.
3. Remove the battery.
4. Remove the base cover.
5. Remove the hard drive.
6. Remove the Bluetooth module.
7. Remove the speakers.
8. Remove the bottom chassis.

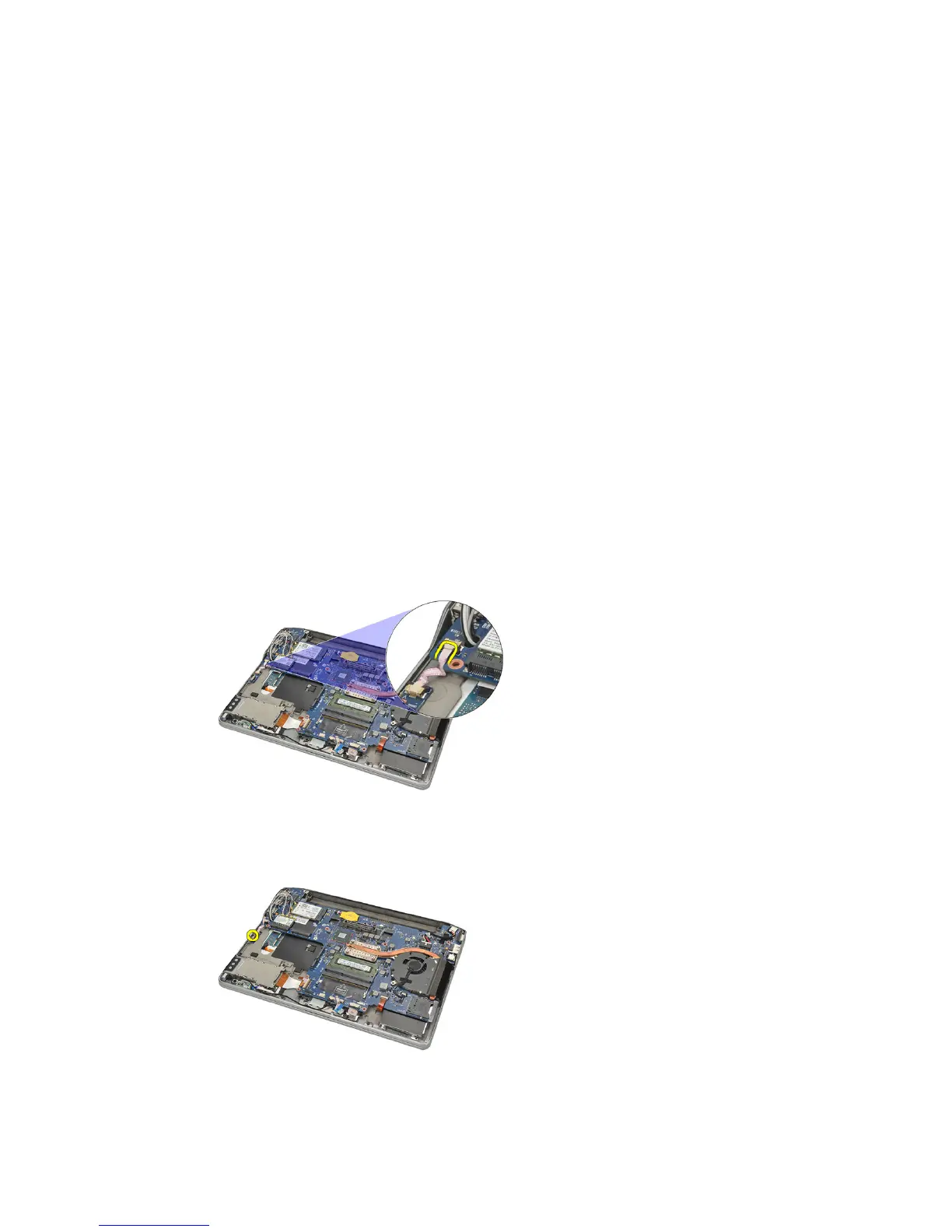

9. Disconnect the wireless switch cable from the system board.
10. Remove the screw securing the wireless switch.
11. Remove the wireless switch.
55
