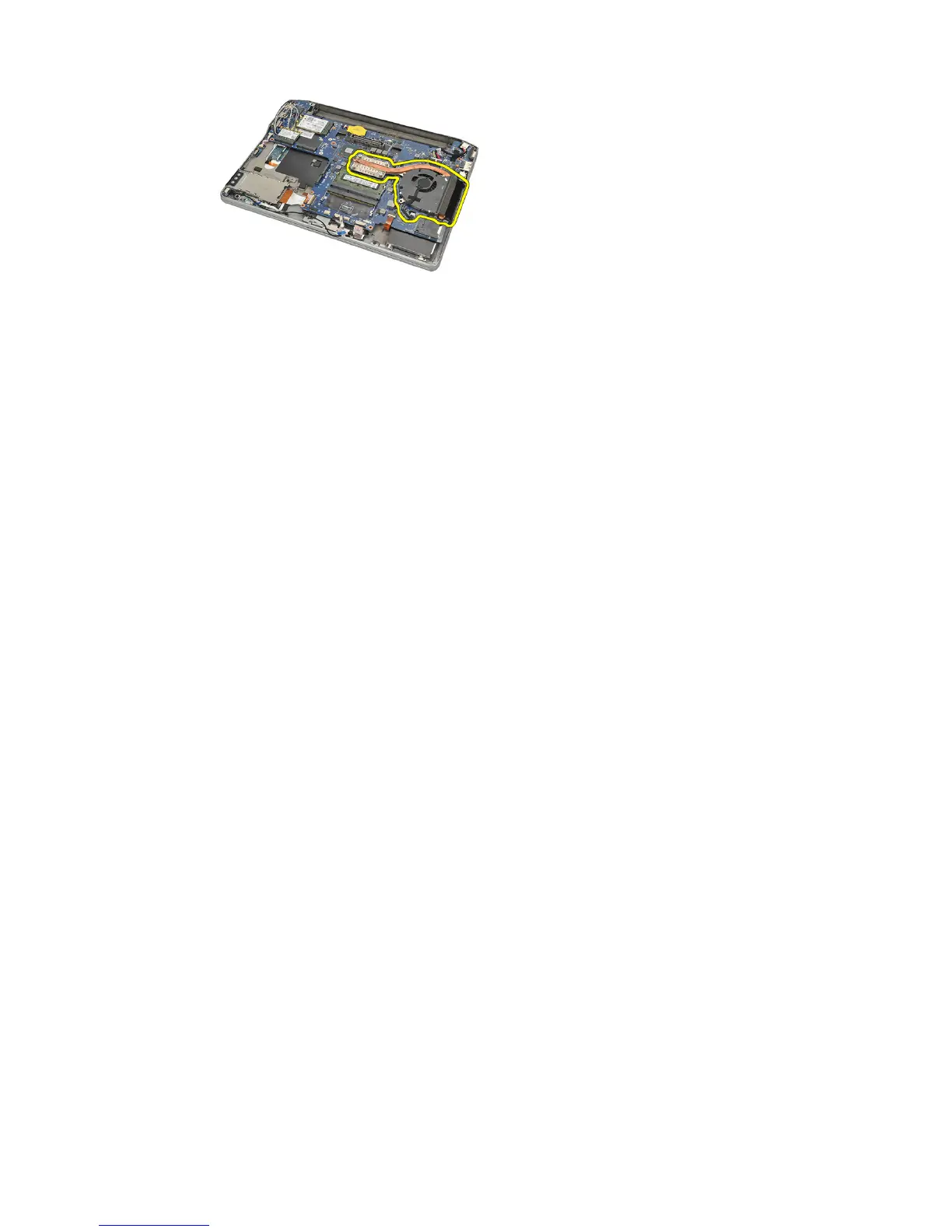

Installing The Heat Sink
1. Align the heat sink and CPU fan assembly in place.
2. Tighten the screws to secure the heat sink and CPU fan.
3. Connect the CPU fan cable to the system board.
4. Install the bottom chassis.
5. Install the speakers.
6. Install the Bluetooth module.
7. Install the hard drive.
8. Install the base cover.
9. Install the battery.
10. Install the secure digital (SD) Card.
11. Follow the procedures in After Working Inside Your Computer.
52
