Dell Latitude E6220 - Display Top Cover; Removing the Display Top Cover

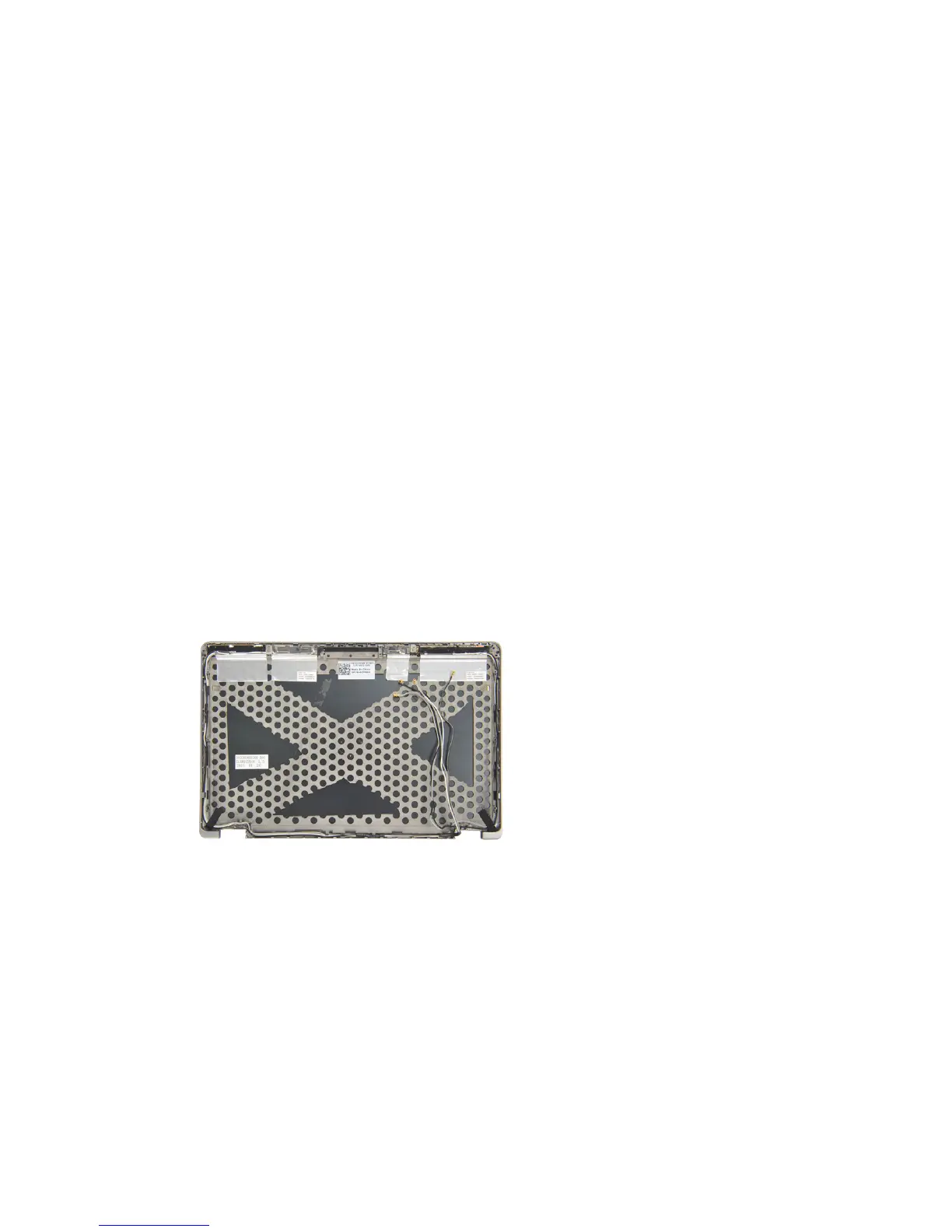

31 Display Top Cover
Removing The Display Top Cover
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the palm rest.
5. Remove the keyboard.
6. Remove the display assembly.
7. Remove the display bezel.
8. Remove the display panel.
9. Remove the camera and microphone.
10. Remove the low voltage differential signalling (LVDS) cable.
11. Remove the display hinges.
12. Remove the display cover.
