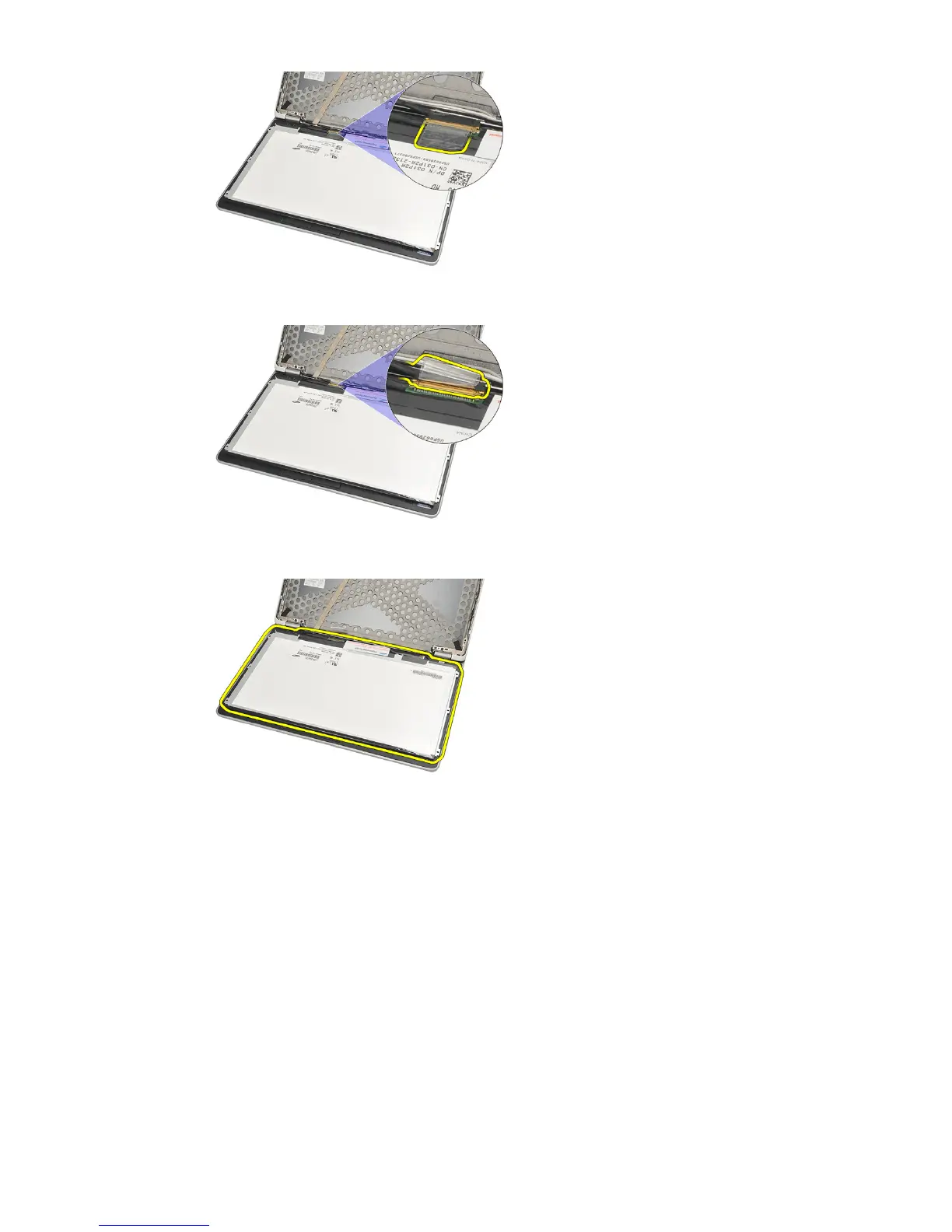

7. Disconnect the LVDS cable from the display panel.
8. Remove the display panel from the computer.
Installing The Display Panel
1. Place the display panel on top of the keyboard.
2. Connect the Low Voltage Differential Signalling (LVDS) cable to the
display panel and attach the adhesive tape to secure the connection.
3. Rotate the display panel upwards into its compartment.
4. Replace and tighten the screws to secure the display panel.
5. Install the display bezel.
6. Install the battery.
7. Follow the procedures in After Working Inside Your Computer.
74
