Dell Latitude E6220 - Keyboard; Removing the Keyboard

15 Keyboard
Removing The Keyboard
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the palm rest.

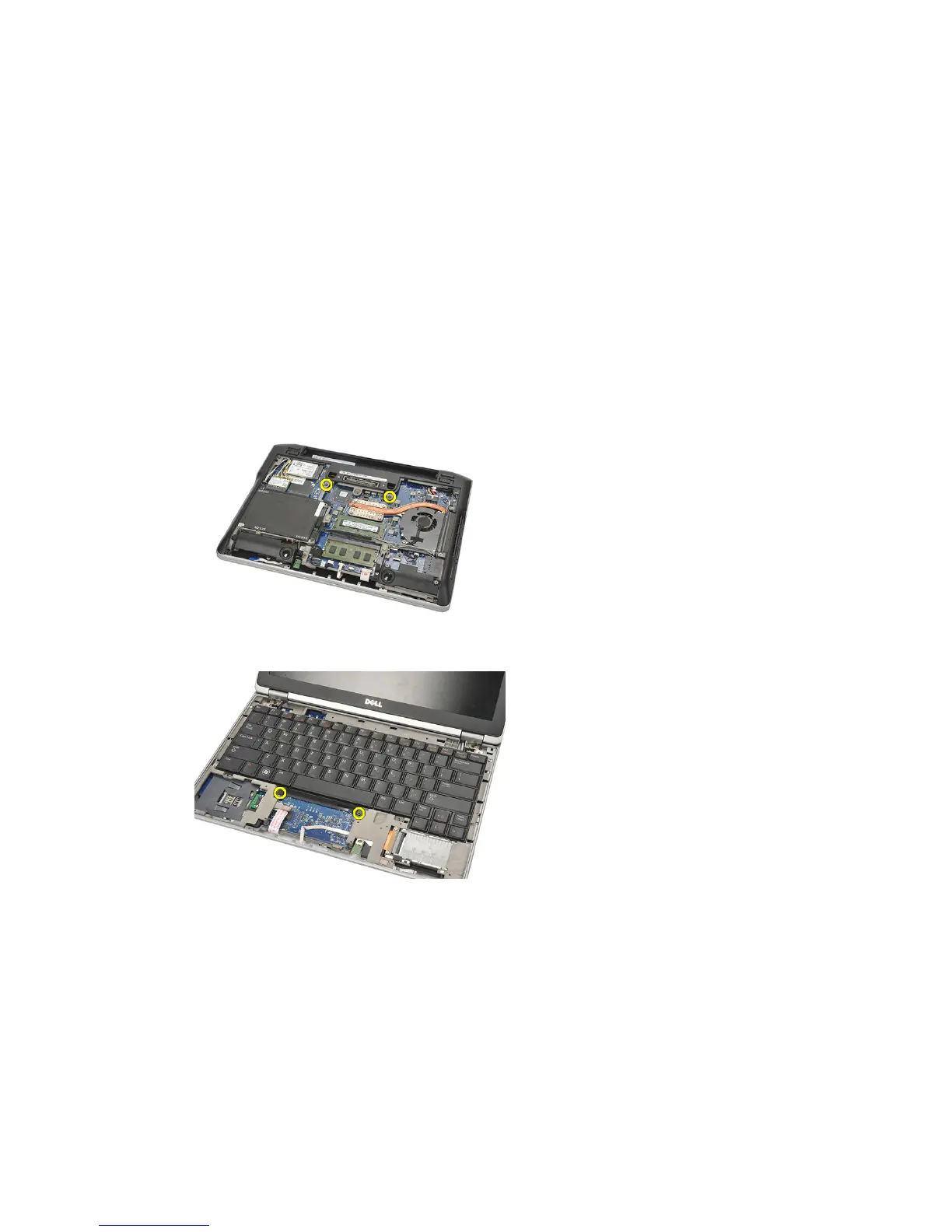

5. Remove the screws from the bottom chassis.
6. Turn over the computer. Remove the screws from the keyboard.
7. Take out the keyboard and flip it over the display panel.
