Dell Latitude E6220 - Expresscard Cage; Removing the Expresscard Cage

22 ExpressCard Cage
Removing The ExpressCard Cage
1. Follow the procedures in Before Working On Your Computer.
2. Remove the secure digital (SD) card.
3. Remove the battery.
4. Remove the base cover.
5. Remove the hard drive.
6. Remove the Bluetooth module.
7. Remove the speakers.
8. Remove the bottom chassis.

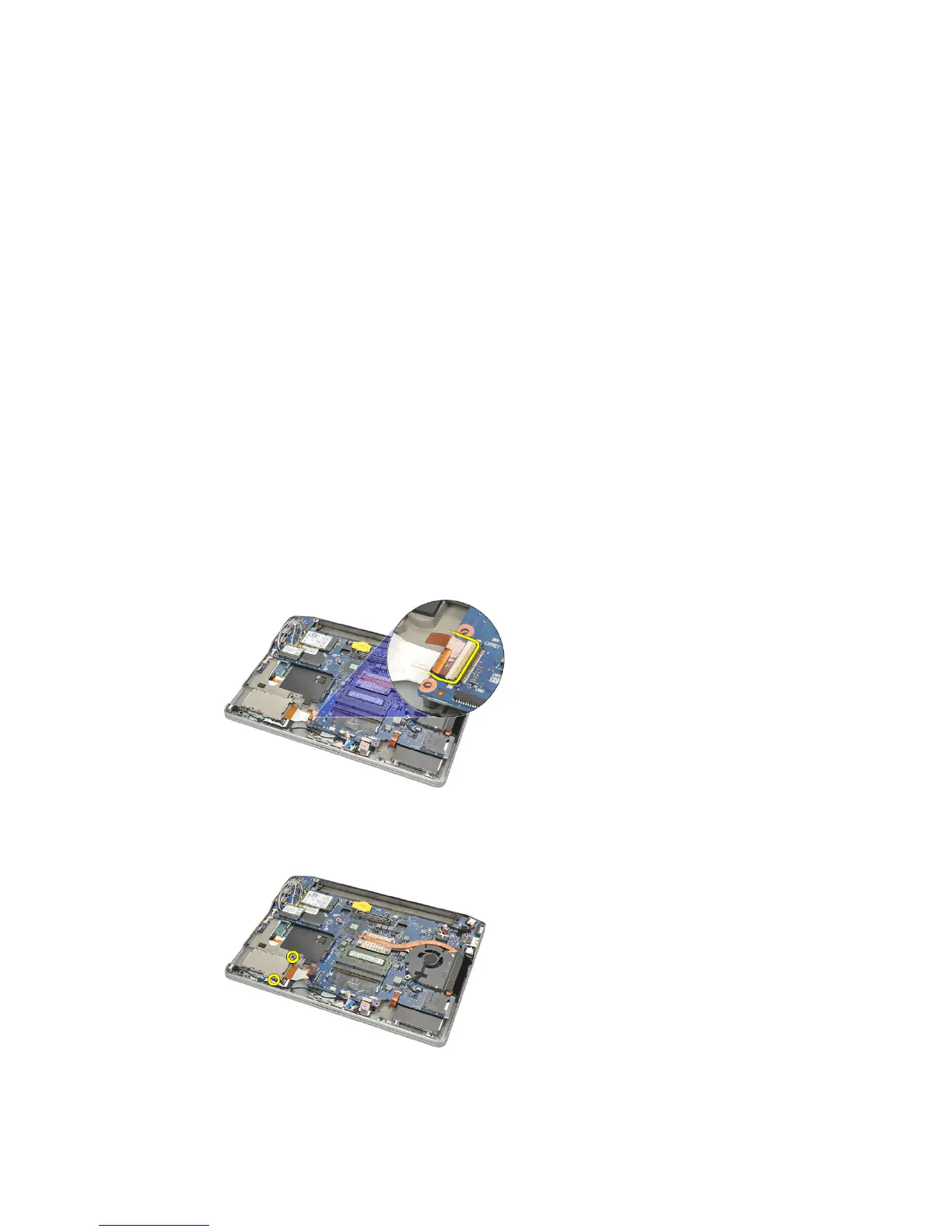

9. Disconnect the flex cable from the system board.
10. Remove the screws securing the ExpressCard cage.
11. Slide out the ExpressCard cage.
59
