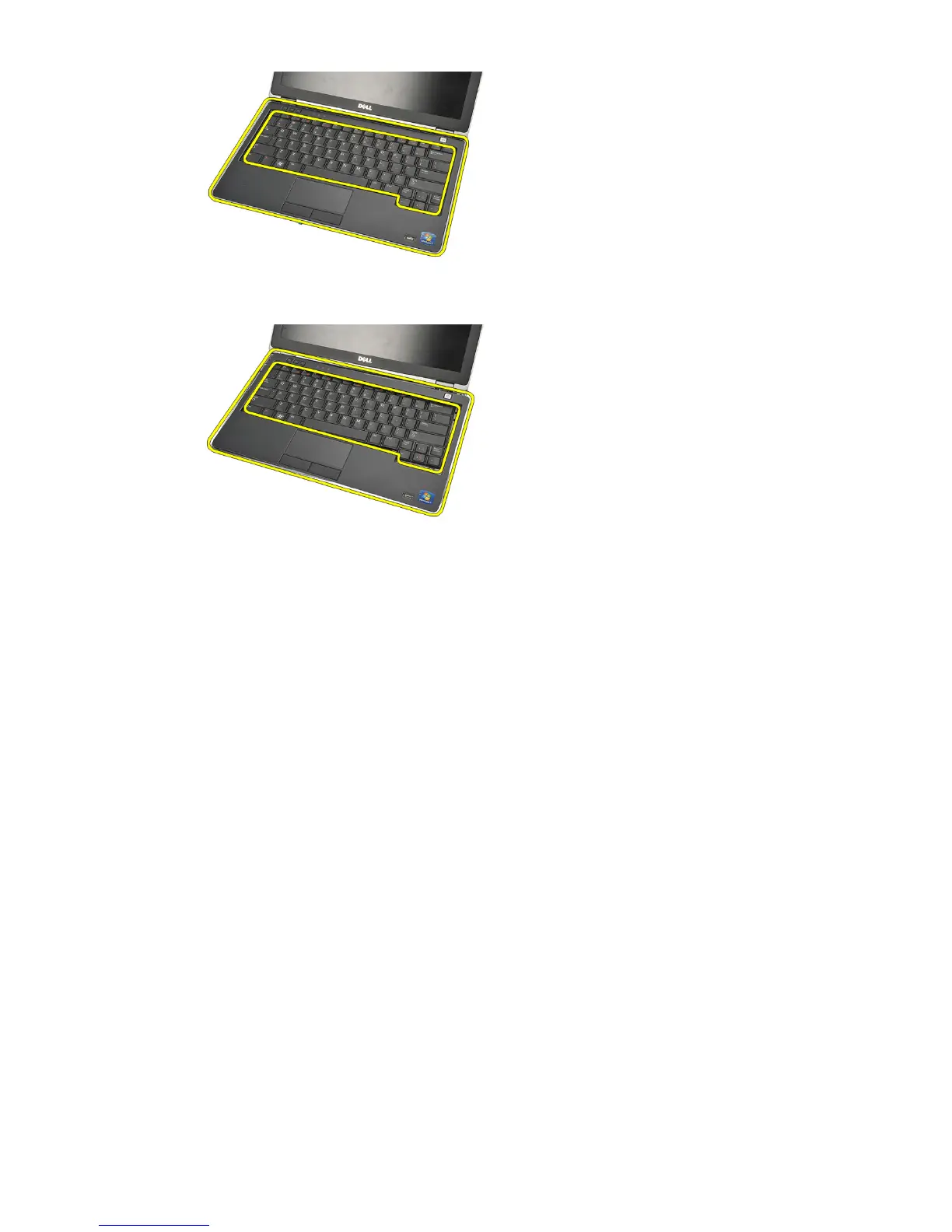

7. Remove the palm rest from the computer.
Installing The Palm Rest
1. Align the palm rest assembly to its original position on the computer
and snap it into place.
2. Connect the following cables to the system board:
• fingerprint reader
• touchpad
• contactless smart card reader
3. Replace and tighten the screws to secure the palm rest to the computer.
4. Install the base cover.
5. Install the battery.
6. Follow the procedures in After Working Inside Your Computer.
38
