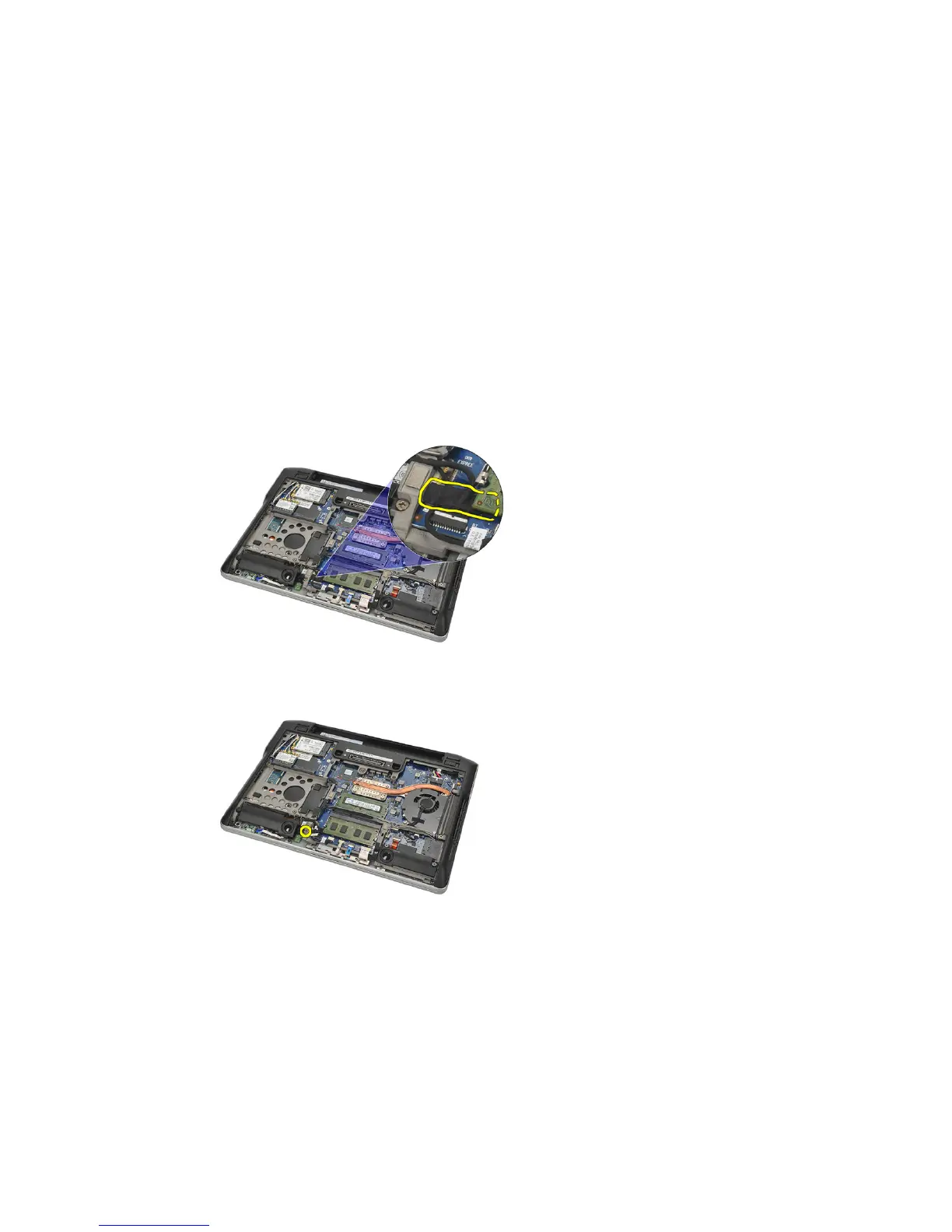

14 Bluetooth Module
Removing The Bluetooth Module
1. Follow the procedures in Before Working on Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Remove the hard drive.
5. Remove the cloth tape to disconnect the Bluetooth cable from the
system board.
6. Remove the screw securing the Bluetooth holder.
7. Remove the Bluetooth holder.
39
