Dell Latitude E6220 - Wireless Wide Area Network (WWAN) Card; Removing the Wireless Wide Area Network (WWAN) Card

11
Wireless Wide Area Network
(WWAN) Card

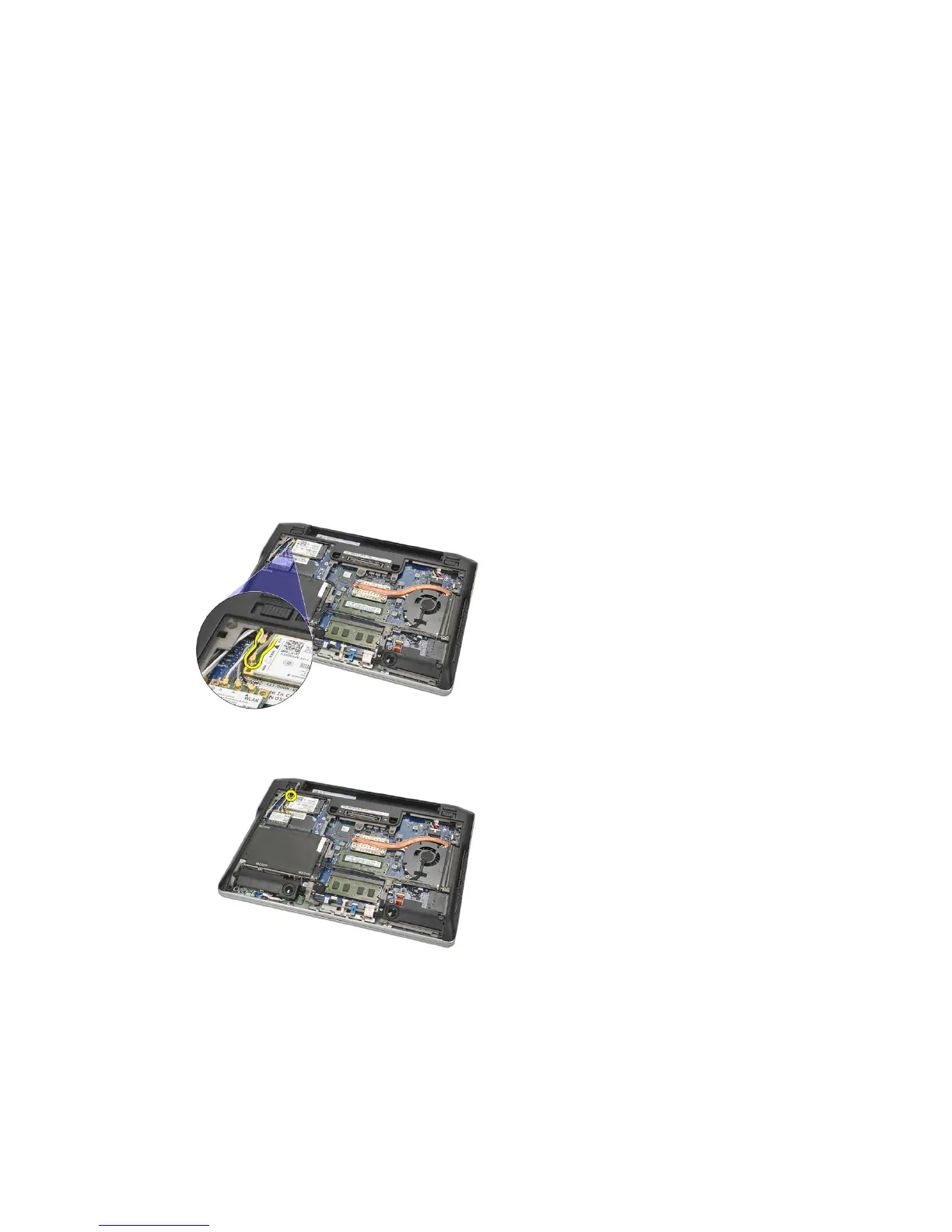

Removing The Wireless Wide Area Network (WWAN) Card
1. Follow the procedures in Before Working On Your Computer.
2. Remove the battery.
3. Remove the base cover.
4. Disconnect the antenna cables from the WWAN card.
NOTE: The WLAN antenna cables are of solid colors while the WWAN antenna
cables are striped.
5. Remove the screw that secures the WWAN card to the computer.
6. Remove the WWAN card from the computer.
33
