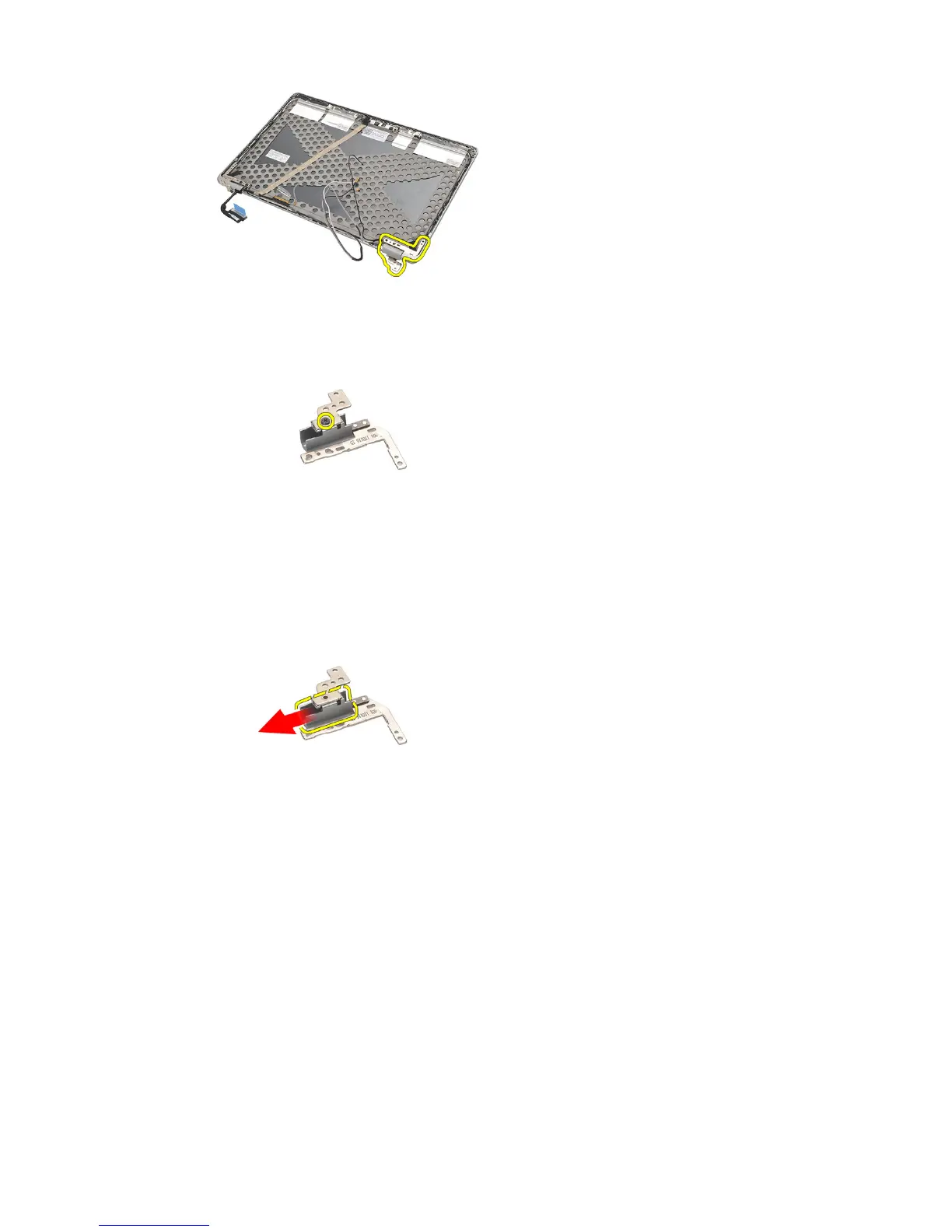

12. Remove the screw that secures the hinge cap.

13. Slide off the hinge cap from the hinge. Repeat all the steps to remove

the other hinge.
