14 Base Cover
4 Remove the remaining two screws that secure the base cover to the
palm-rest assembly.
5 Use your fingertips to release the tabs on the base cover from the slots on
the palm-rest assembly.
6 Lift the base cover off the palm-rest assembly.

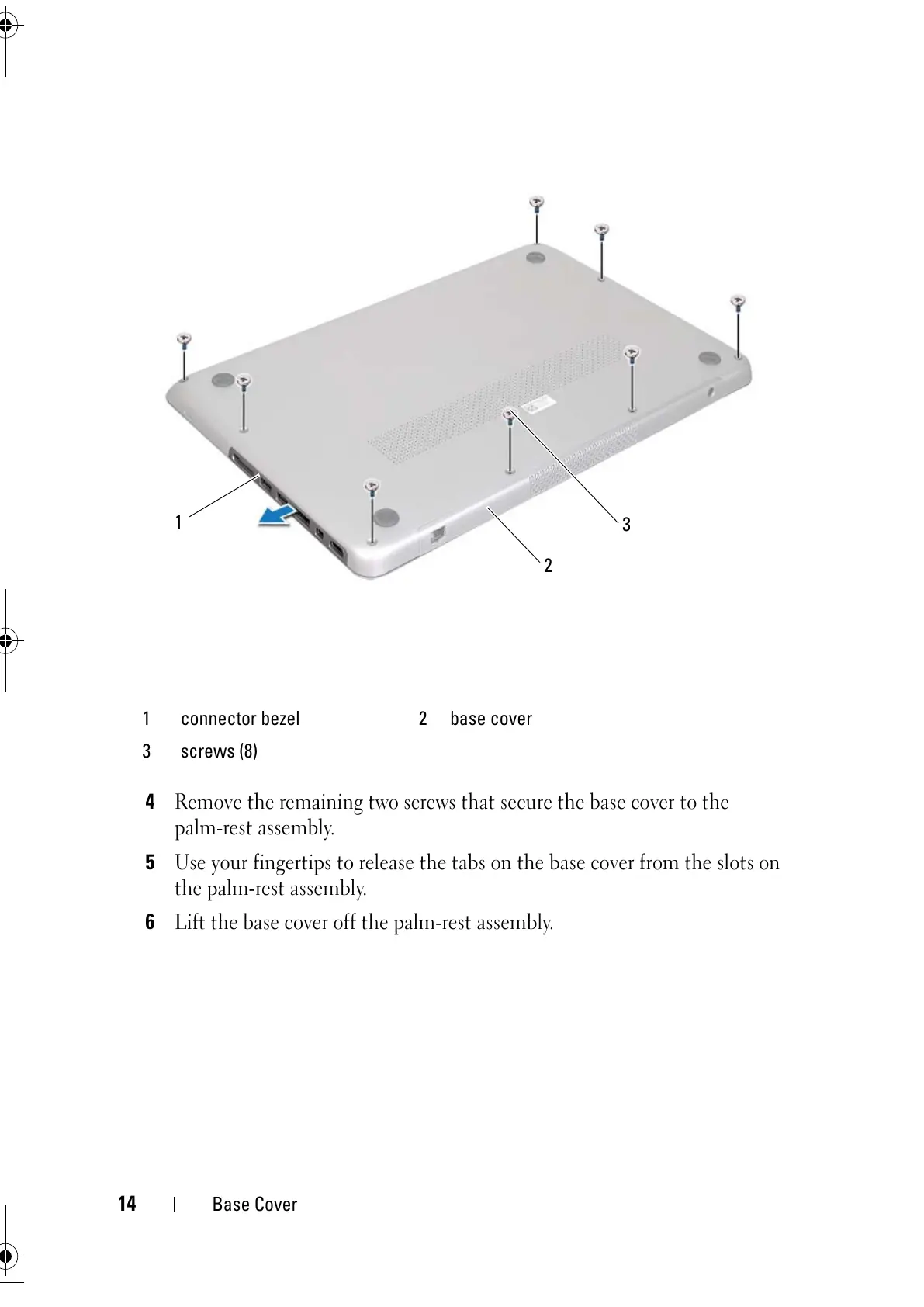

1 connector bezel 2 base cover
3 screws (8)
1
2
3
