48 Audio Board
Replacing the Audio Board
1
Follow the instructions in "Before You Begin" on page 9.
2
Align the screw holes on the audio board with the screw holes on the palm-
rest assembly.
3
Replace the two screws that secure the audio board to the palm-rest
assembly.
4
Slide the audio-board cable into the connector on the system board and
press the connector latch down to secure the cable.
5
Connect the speaker cable to the connector on the audio board.

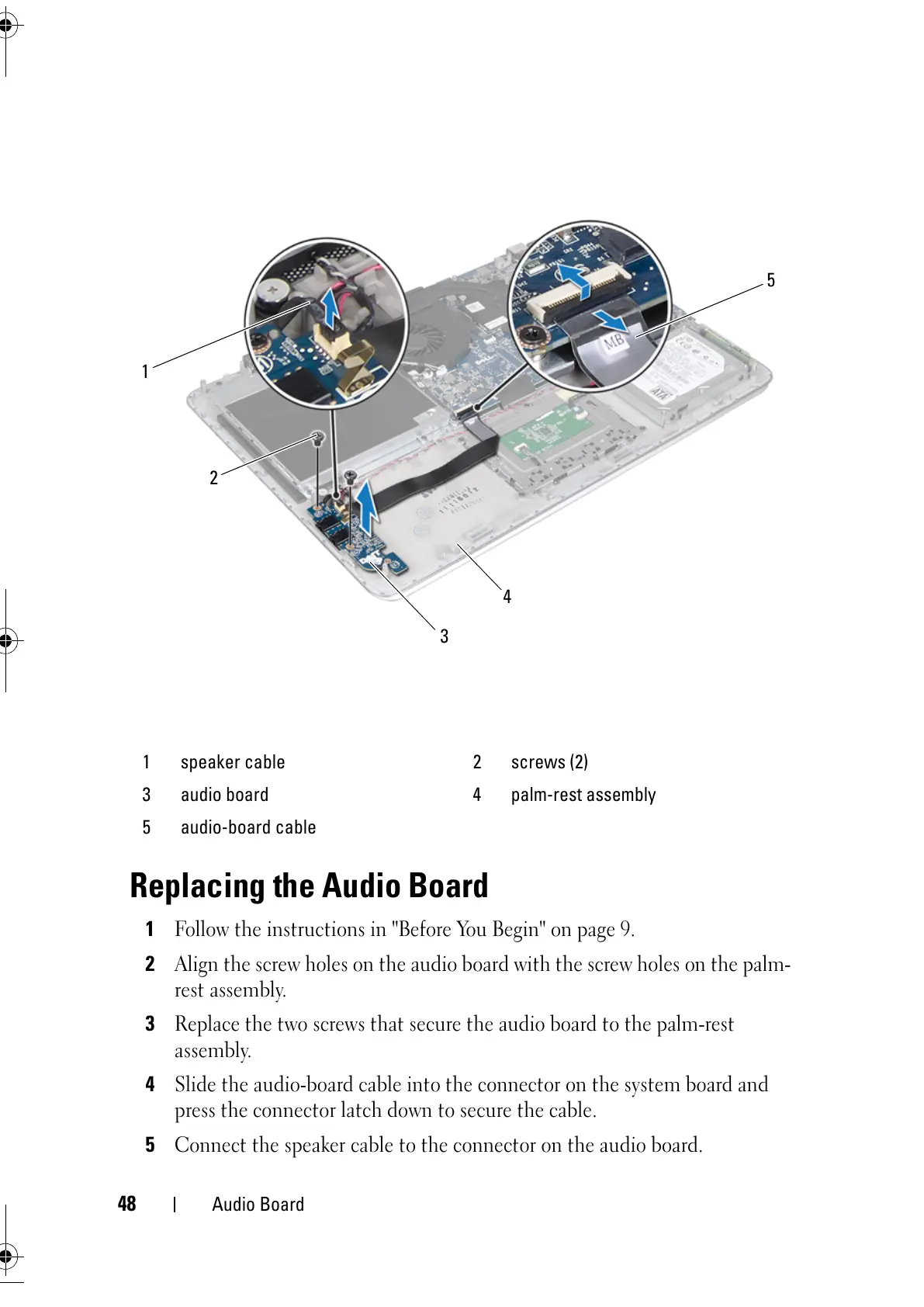

1 speaker cable 2 screws (2)
3 audio board 4 palm-rest assembly
5 audio-board cable
