AC-Adapter Connector 39
9

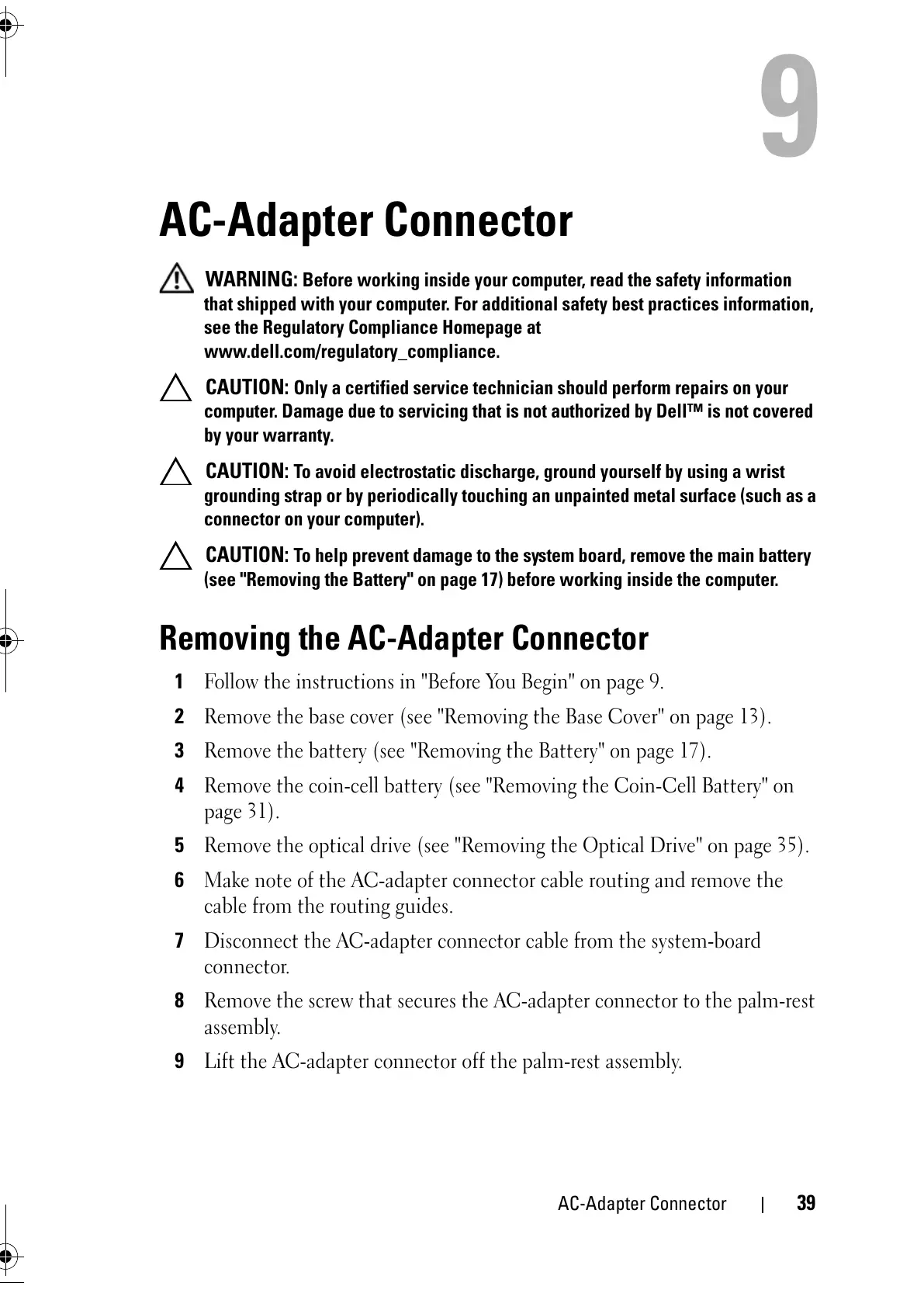

AC-Adapter Connector
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 17) before working inside the computer.
Removing the AC-Adapter Connector
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the base cover (see "Removing the Base Cover" on page 13).
3
Remove the battery (see "Removing the Battery" on page 17).
4
Remove the coin-cell battery (see "Removing the Coin-Cell Battery" on
page 31).
5
Remove the optical drive (see "Removing the Optical Drive" on page 35).
6
Make note of the AC-adapter connector cable routing and remove the
cable from the routing guides.
7
Disconnect the AC-adapter connector cable from the system-board
connector.
8
Remove the screw that secures the AC-adapter connector to the palm-rest
assembly.
9
Lift the AC-adapter connector off the palm-rest assembly.
