Power-Button Board 43
10

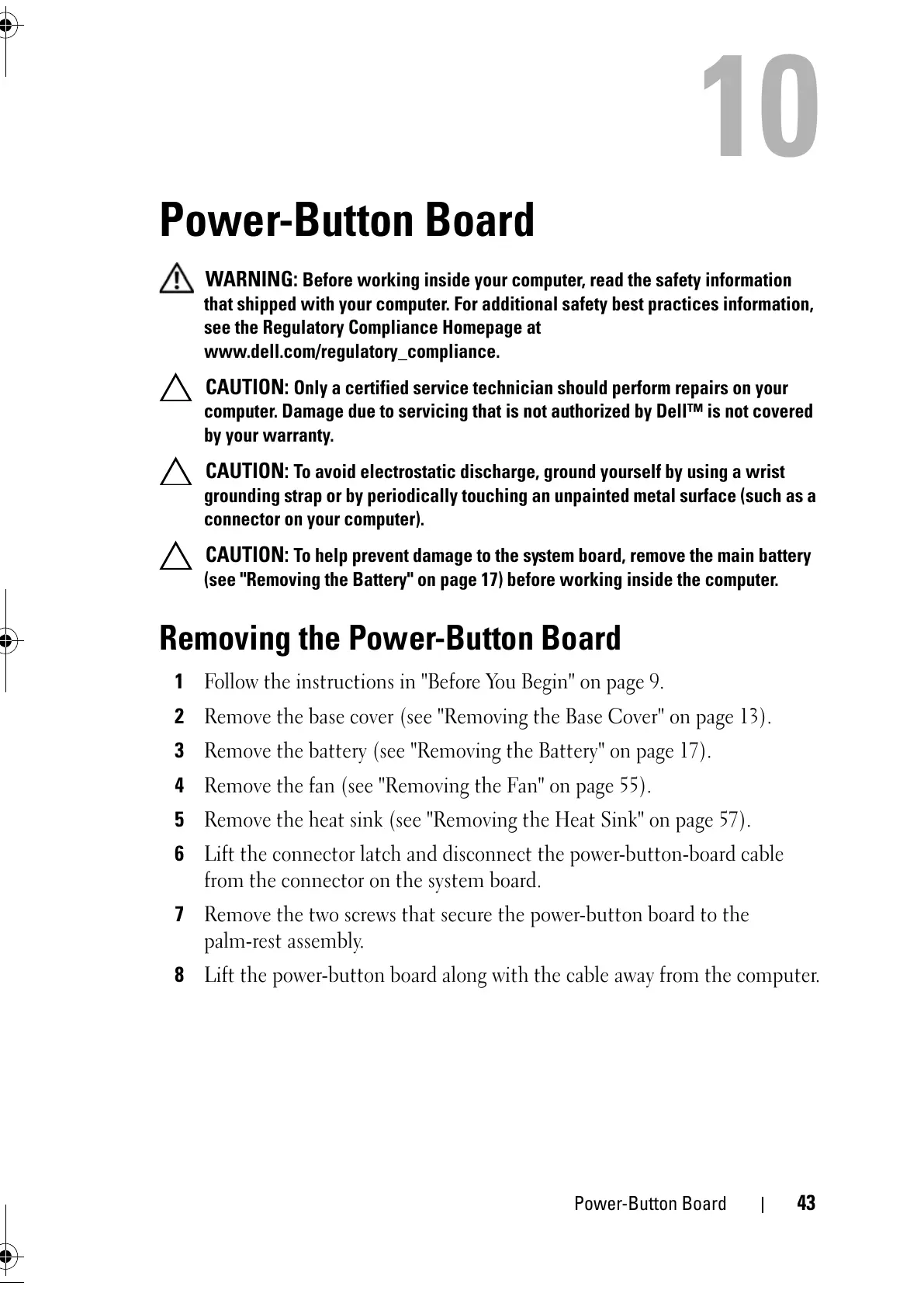

Power-Button Board
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 17) before working inside the computer.
Removing the Power-Button Board
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the base cover (see "Removing the Base Cover" on page 13).
3
Remove the battery (see "Removing the Battery" on page 17).
4
Remove the fan (see "Removing the Fan" on page 55).
5
Remove the heat sink (see "Removing the Heat Sink" on page 57).
6
Lift the connector latch and disconnect the power-button-board cable
from the connector on the system board.
7
Remove the two screws that secure the power-button board to the
palm-rest assembly.
8
Lift the power-button board along with the cable away from the computer.
book.book Page 43 Friday, February 21, 2014 12:07 PM
