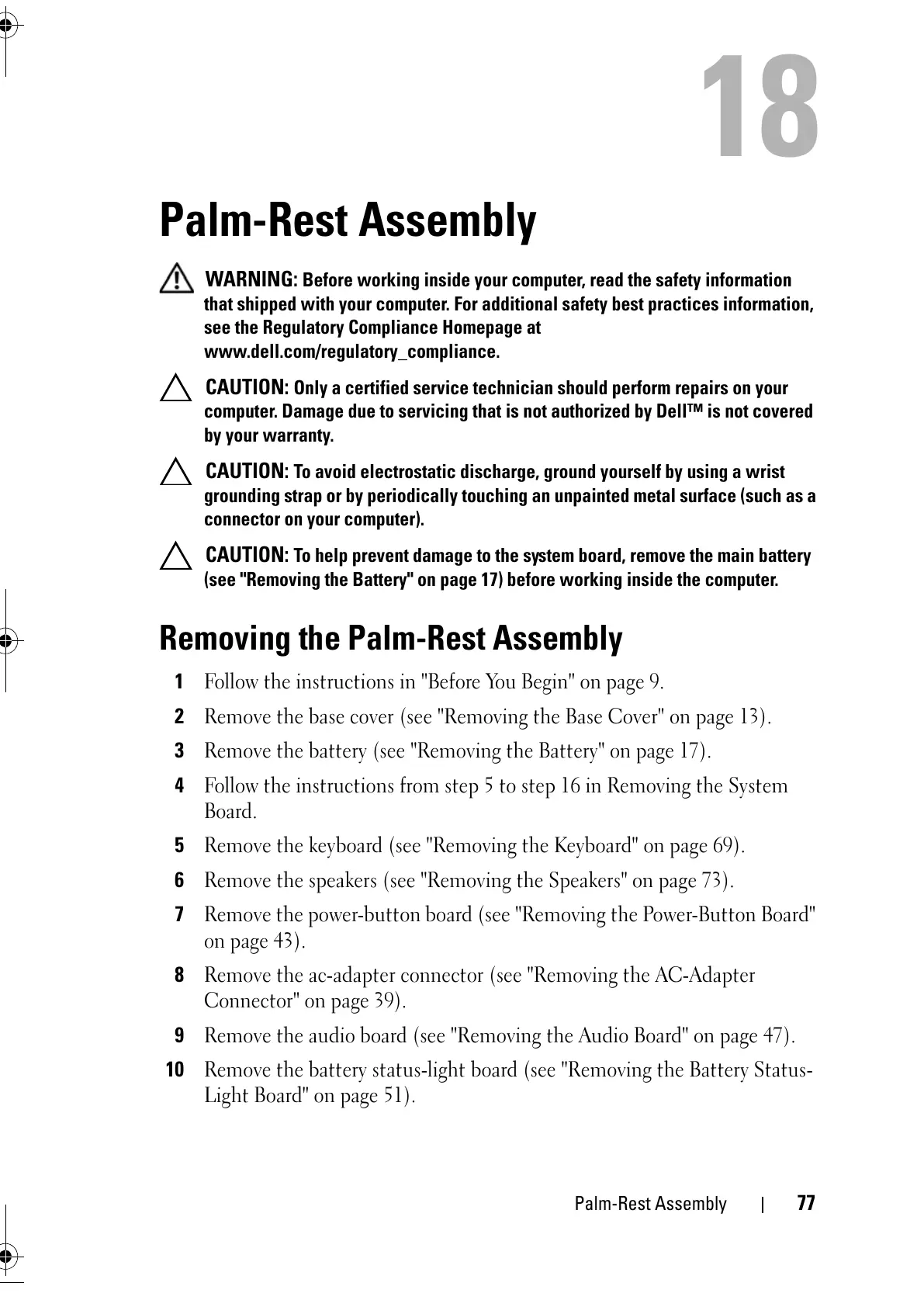

Palm-Rest Assembly 77
18
Palm-Rest Assembly
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 17) before working inside the computer.
Removing the Palm-Rest Assembly
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the base cover (see "Removing the Base Cover" on page 13).
3
Remove the battery (see "Removing the Battery" on page 17).
4
Follow the instructions from step 5 to step 16 in Removing the System
Board.
5
Remove the keyboard (see "Removing the Keyboard" on page 69).
6
Remove the speakers (see "Removing the Speakers" on page 73).
7
Remove the power-button board (see "Removing the Power-Button Board"
on page 43).
8
Remove the ac-adapter connector (see "Removing the AC-Adapter
Connector" on page 39).
9
Remove the audio board (see "Removing the Audio Board" on page 47).
10
Remove the battery status-light board (see "Removing the Battery Status-
Light Board" on page 51).
book.book Page 77 Friday, February 21, 2014 12:07 PM
