Camera Module 91
20

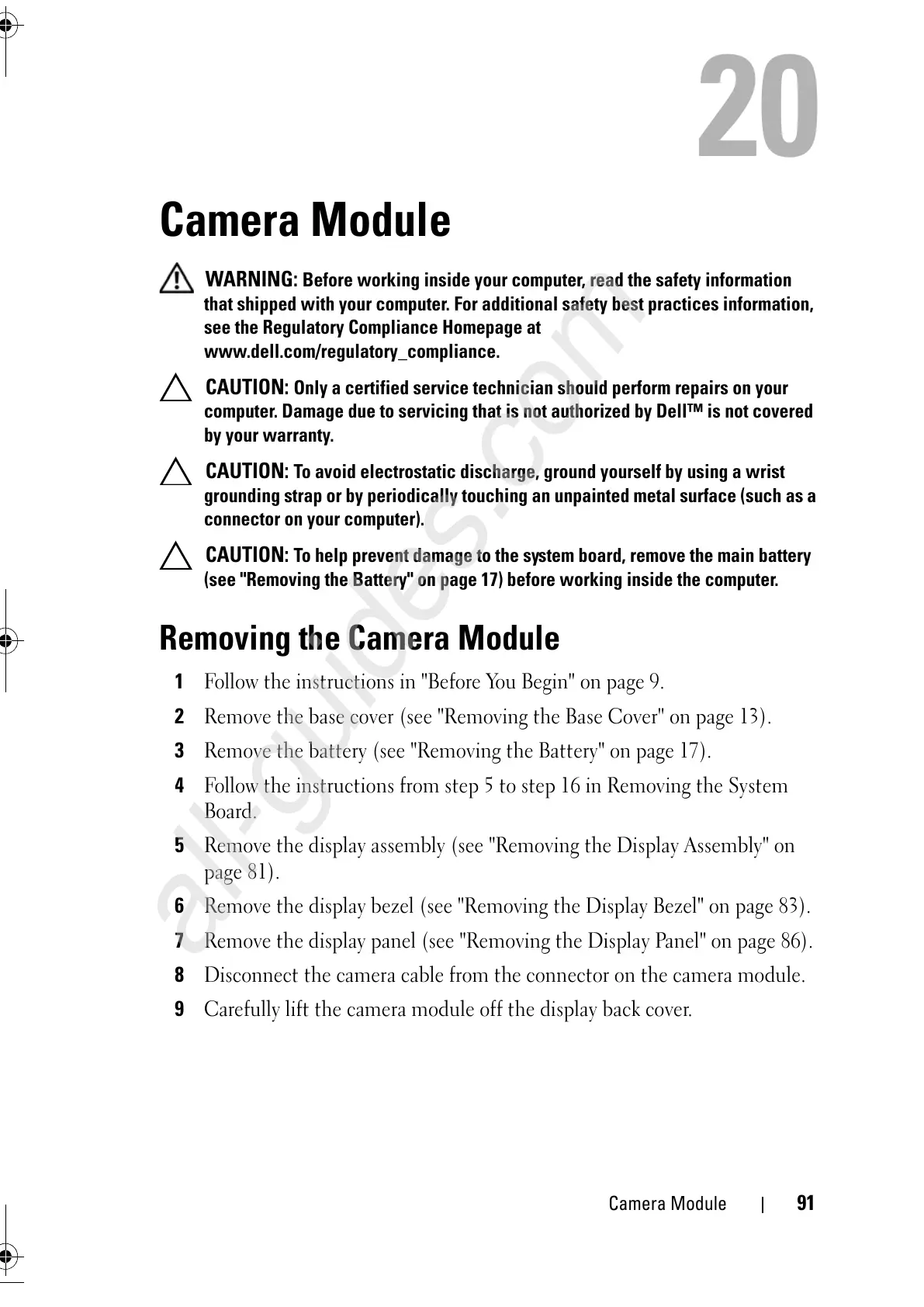

Camera Module
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 17) before working inside the computer.
Removing the Camera Module
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the base cover (see "Removing the Base Cover" on page 13).
3
Remove the battery (see "Removing the Battery" on page 17).
4
Follow the instructions from step 5 to step 16 in Removing the System
Board.
5
Remove the display assembly (see "Removing the Display Assembly" on
page 81).
6
Remove the display bezel (see "Removing the Display Bezel" on page 83).
7
Remove the display panel (see "Removing the Display Panel" on page 86).
8
Disconnect the camera cable from the connector on the camera module.
9
Carefully lift the camera module off the display back cover.
book.book Page 91 Friday, February 21, 2014 12:07 PM
