Display 85
Replacing the Display Bezel
1
Follow the instructions in "Before You Begin" on page 9.
2
Align the display bezel with the display back cover and replace the four
screws that secure the display bezel to the display back cover.
3
Adhere the display bezel surround along the display bezel.
4
Replace the display assembly (see "Replacing the Display Assembly" on
page 82).
CAUTION: Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.

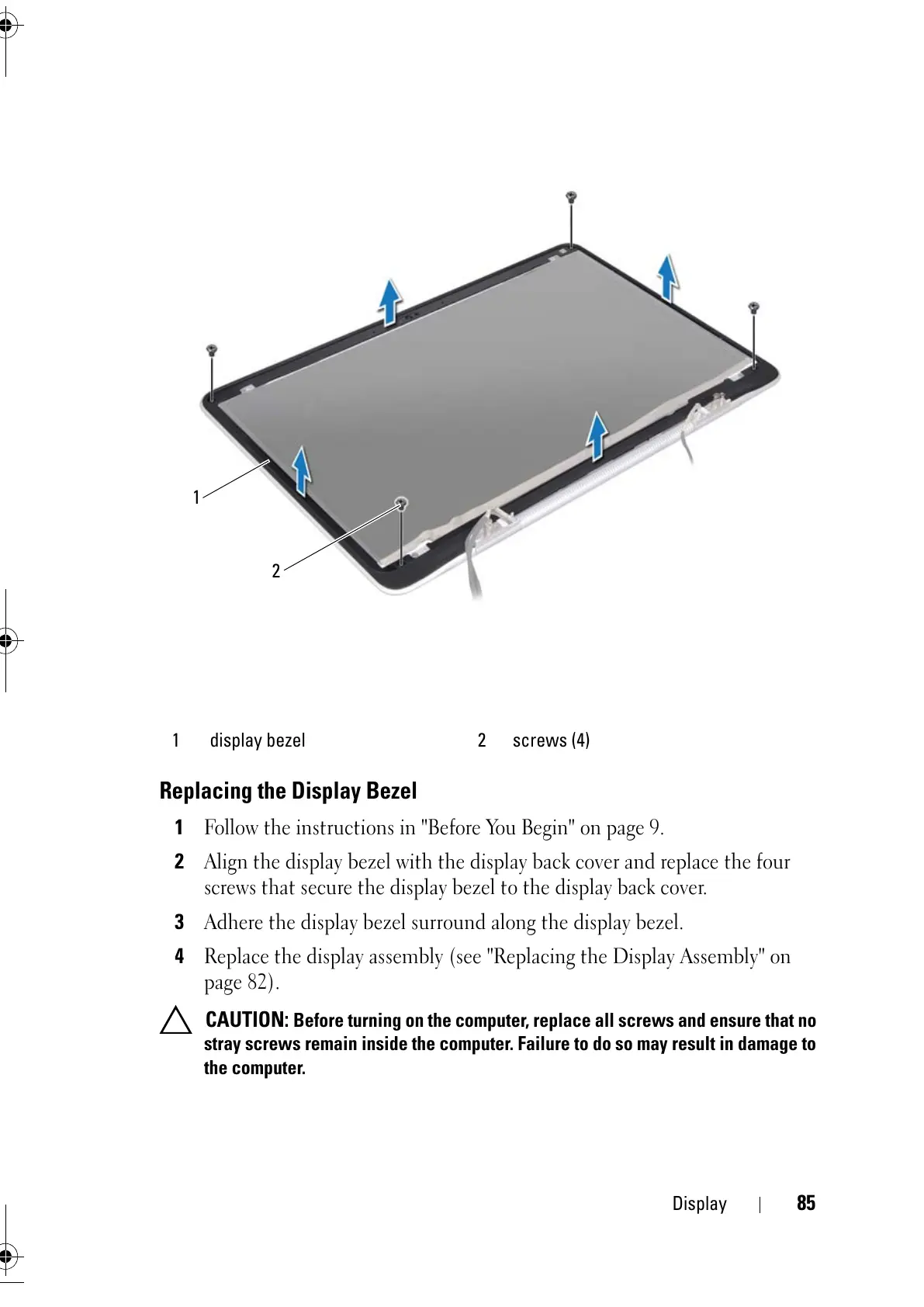

1 display bezel 2 screws (4)
