Audio Board 47
11

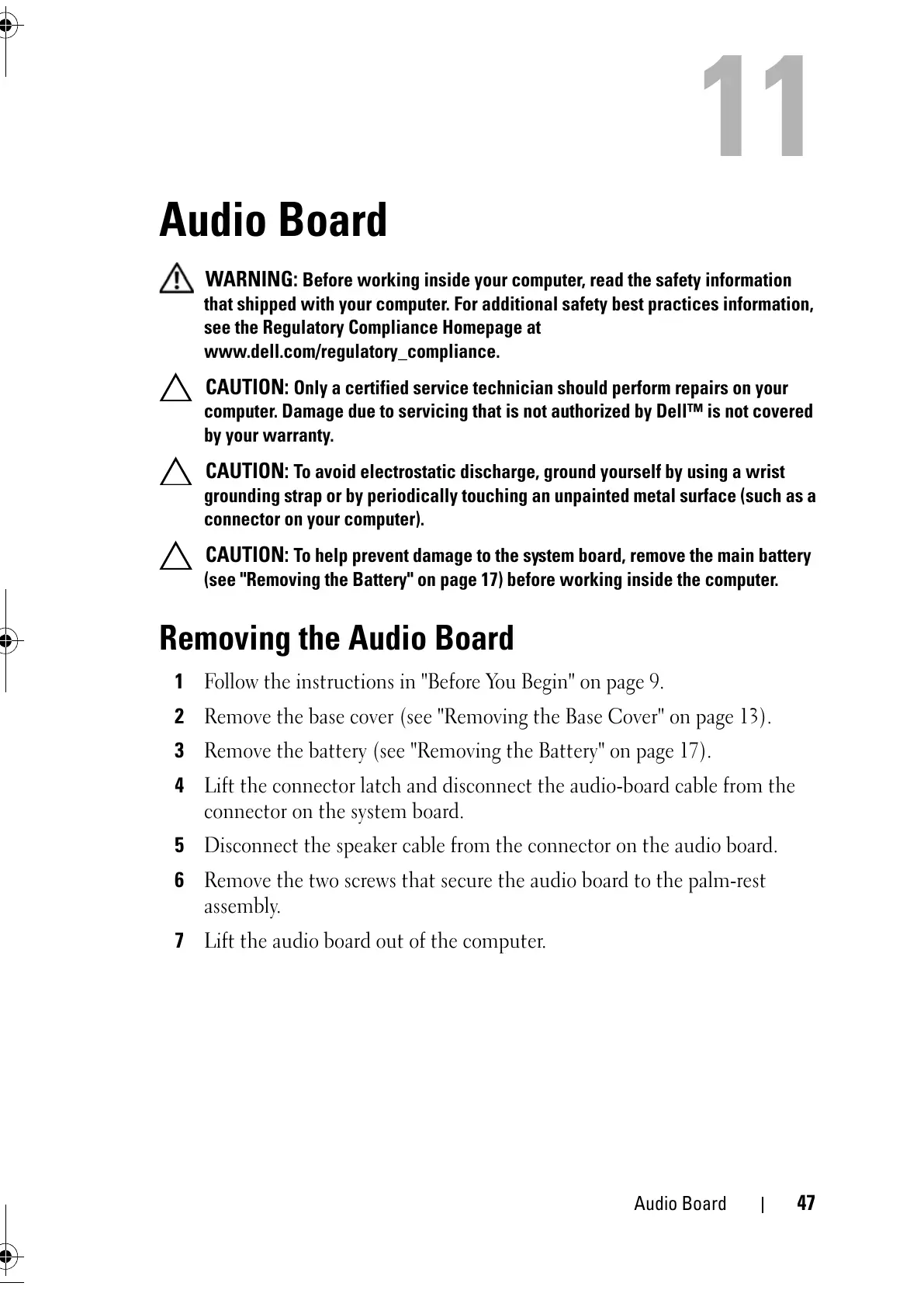

Audio Board
WARNING: Before working inside your computer, read the safety information
that shipped with your computer. For additional safety best practices information,
see the Regulatory Compliance Homepage at
www.dell.com/regulatory_compliance.
CAUTION: Only a certified service technician should perform repairs on your
computer. Damage due to servicing that is not authorized by Dell™ is not covered
by your warranty.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist
grounding strap or by periodically touching an unpainted metal surface (such as a
connector on your computer).
CAUTION: To help prevent damage to the system board, remove the main battery
(see "Removing the Battery" on page 17) before working inside the computer.
Removing the Audio Board
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the base cover (see "Removing the Base Cover" on page 13).
3
Remove the battery (see "Removing the Battery" on page 17).
4
Lift the connector latch and disconnect the audio-board cable from the
connector on the system board.
5
Disconnect the speaker cable from the connector on the audio board.
6
Remove the two screws that secure the audio board to the palm-rest
assembly.
7
Lift the audio board out of the computer.
book.book Page 47 Friday, February 21, 2014 12:07 PM
