Hard Drive 29
8

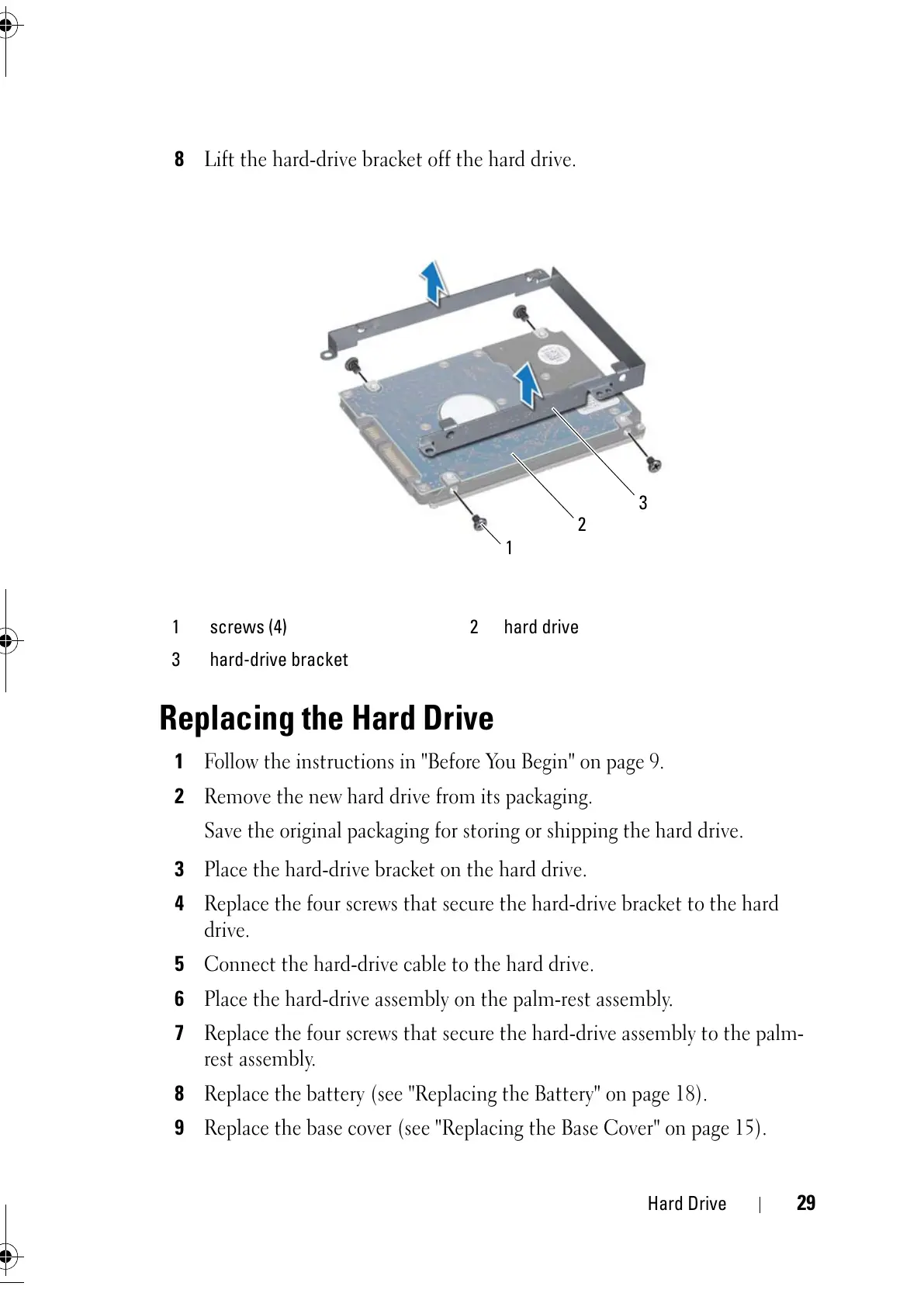

Lift the hard-drive bracket off the hard drive.
Replacing the Hard Drive
1
Follow the instructions in "Before You Begin" on page 9.
2
Remove the new hard drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
3
Place the hard-drive bracket on the hard drive.
4
Replace the four screws that secure the hard-drive bracket to the hard
drive.
5
Connect the hard-drive cable to the hard drive.
6
Place the hard-drive assembly on the palm-rest assembly.
7
Replace the four screws that secure the hard-drive assembly to the palm-
rest assembly.
8
Replace the battery (see "Replacing the Battery" on page 18).
9
Replace the base cover (see "Replacing the Base Cover" on page 15).
1 screws (4) 2 hard drive
3 hard-drive bracket
