64 System Board
16
Lift the system board off the palm-rest assembly.
Replacing the System Board
1
Follow the instructions in "Before You Begin" on page 9.
2
Connect the hard drive cable and the battery status-light-board cable to
the system-board connectors.
3
Place the system board on the palm-rest assembly.
4
Replace the six screws that secure the system board to the palm-rest
assembly.

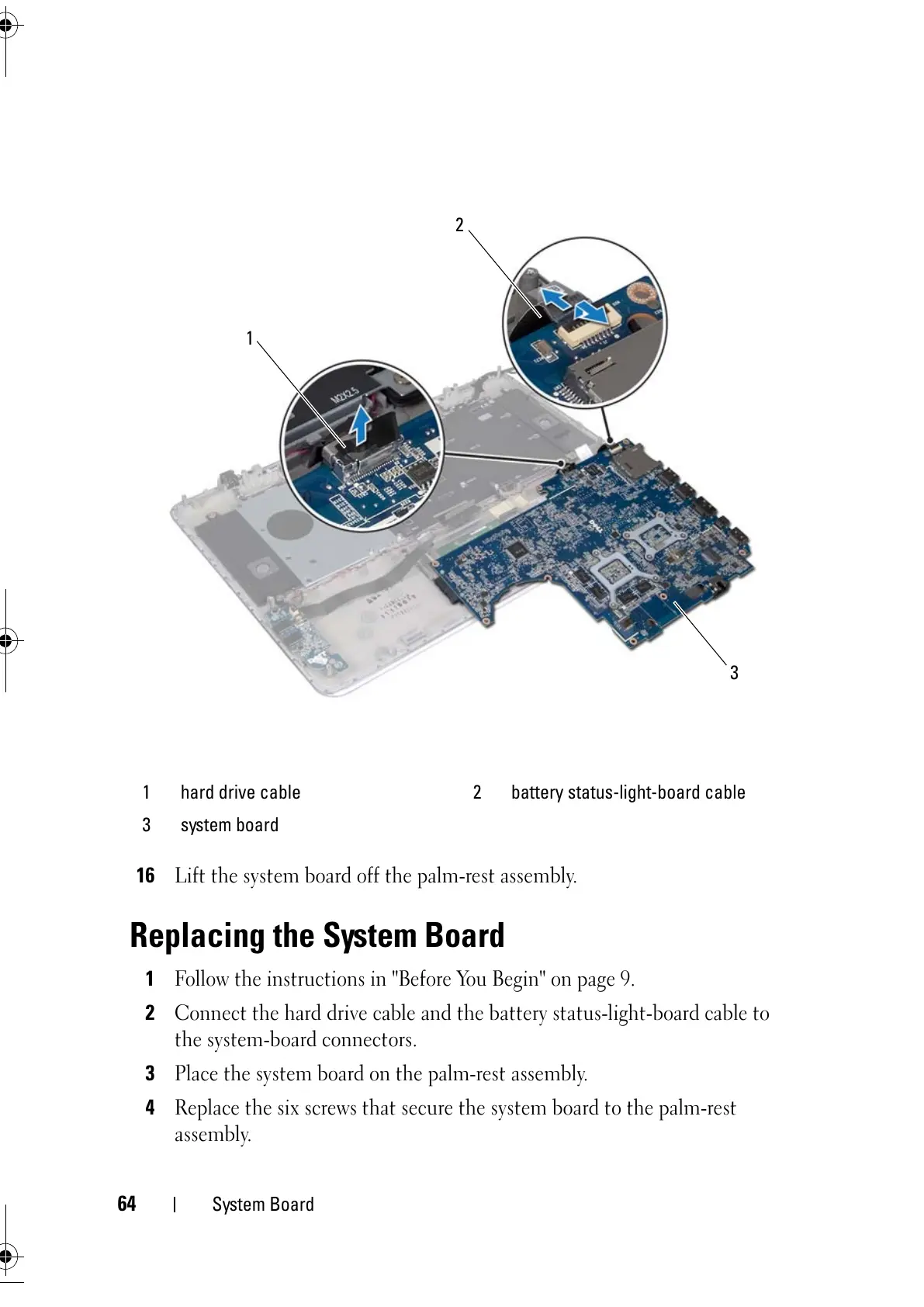

1 hard drive cable 2 battery status-light-board cable
3 system board
