82 Display

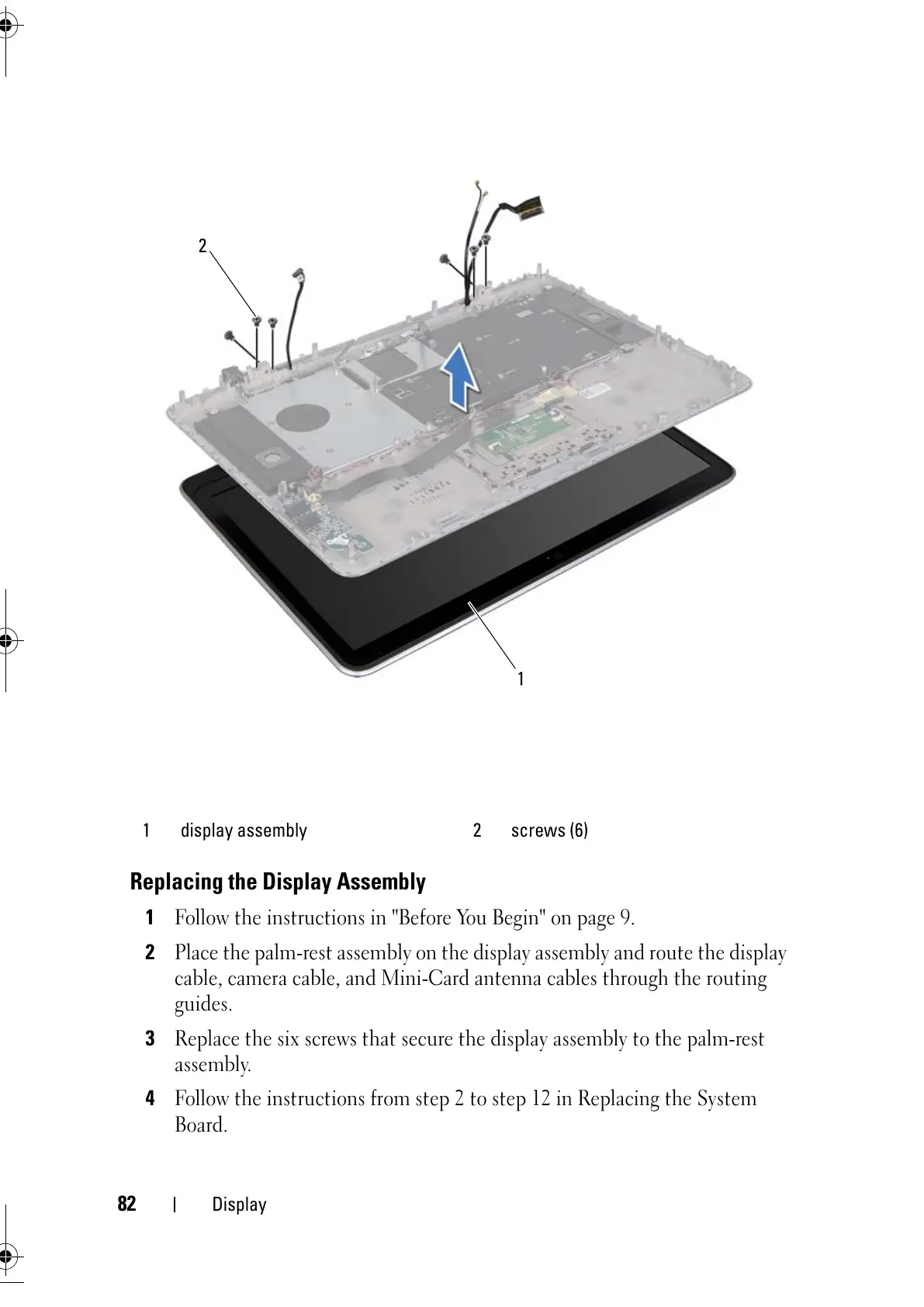

Replacing the Display Assembly
1
Follow the instructions in "Before You Begin" on page 9.
2
Place the palm-rest assembly on the display assembly and route the display
cable, camera cable, and Mini-Card antenna cables through the routing
guides.
3
Replace the six screws that secure the display assembly to the palm-rest
assembly.
4
Follow the instructions from step 2 to step 12 in Replacing the System
Board.
1 display assembly 2 screws (6)
