36 Optical Drive

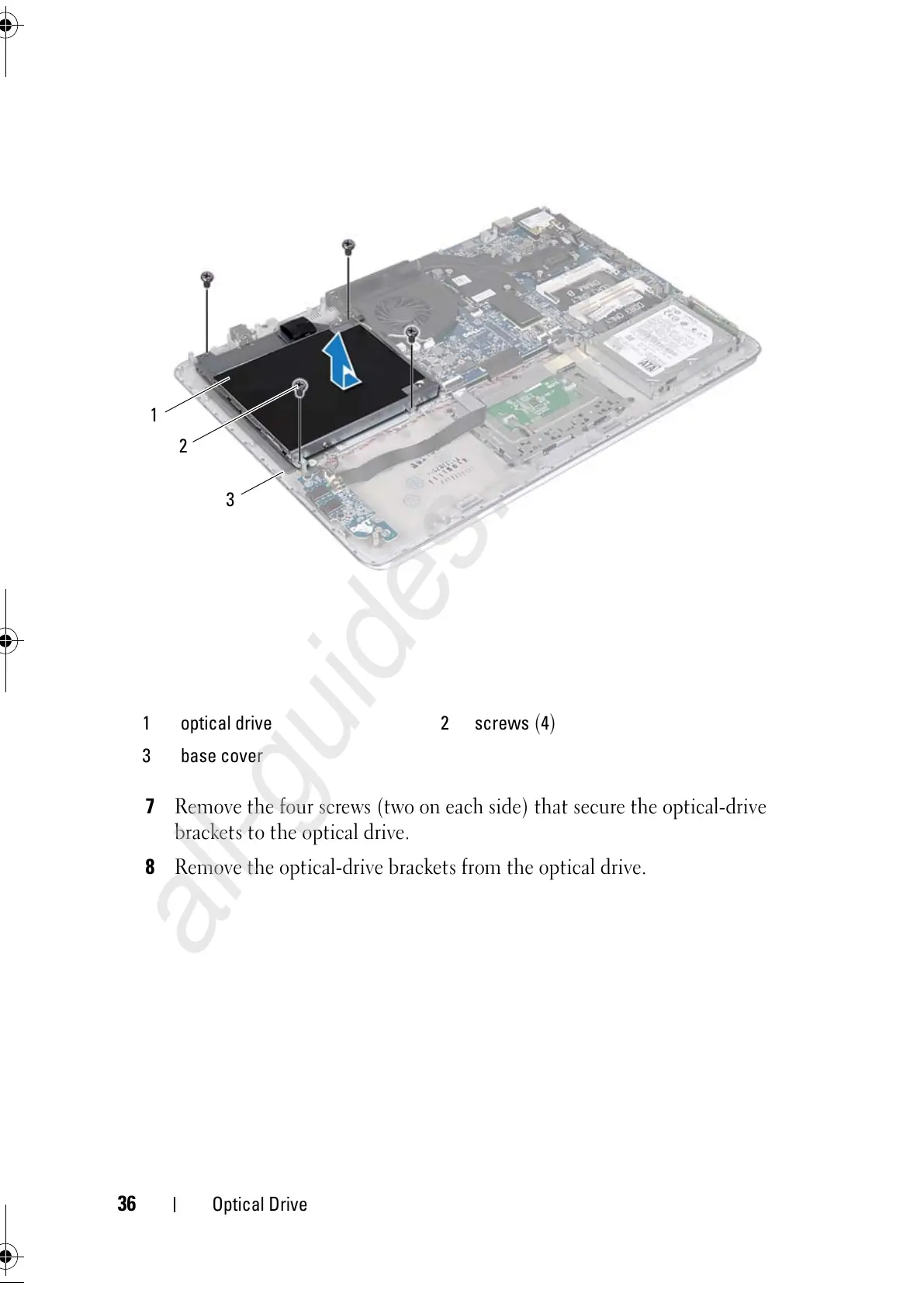

7 Remove the four screws (two on each side) that secure the optical-drive
brackets to the optical drive.
8 Remove the optical-drive brackets from the optical drive.
1 optical drive 2 screws ( 4 )
3 base cover
2
3
1
