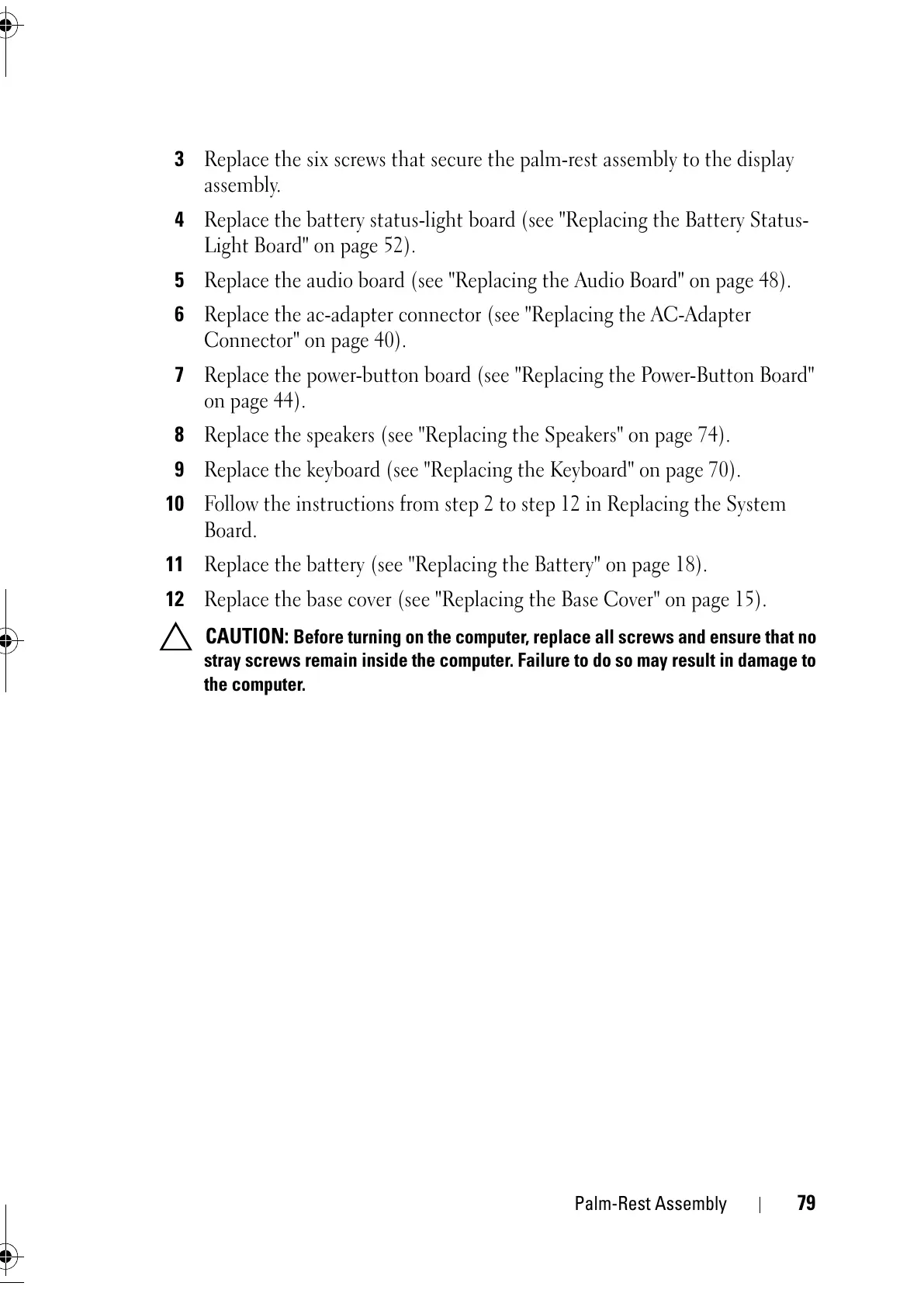

Palm-Rest Assembly 79
3
Replace the six screws that secure the palm-rest assembly to the display
assembly.
4
Replace the battery status-light board (see "Replacing the Battery Status-
Light Board" on page 52).
5
Replace the audio board (see "Replacing the Audio Board" on page 48).
6
Replace the ac-adapter connector (see "Replacing the AC-Adapter
Connector" on page 40).
7
Replace the power-button board (see "Replacing the Power-Button Board"
on page 44).
8
Replace the speakers (see "Replacing the Speakers" on page 74).
9
Replace the keyboard (see "Replacing the Keyboard" on page 70).
10
Follow the instructions from step 2 to step 12 in Replacing the System
Board.
11
Replace the battery (see "Replacing the Battery" on page 18).
12
Replace the base cover (see "Replacing the Base Cover" on page 15).
CAUTION: Before turning on the computer, replace all screws and ensure that no
stray screws remain inside the computer. Failure to do so may result in damage to
the computer.
