Controlling Management Access 183

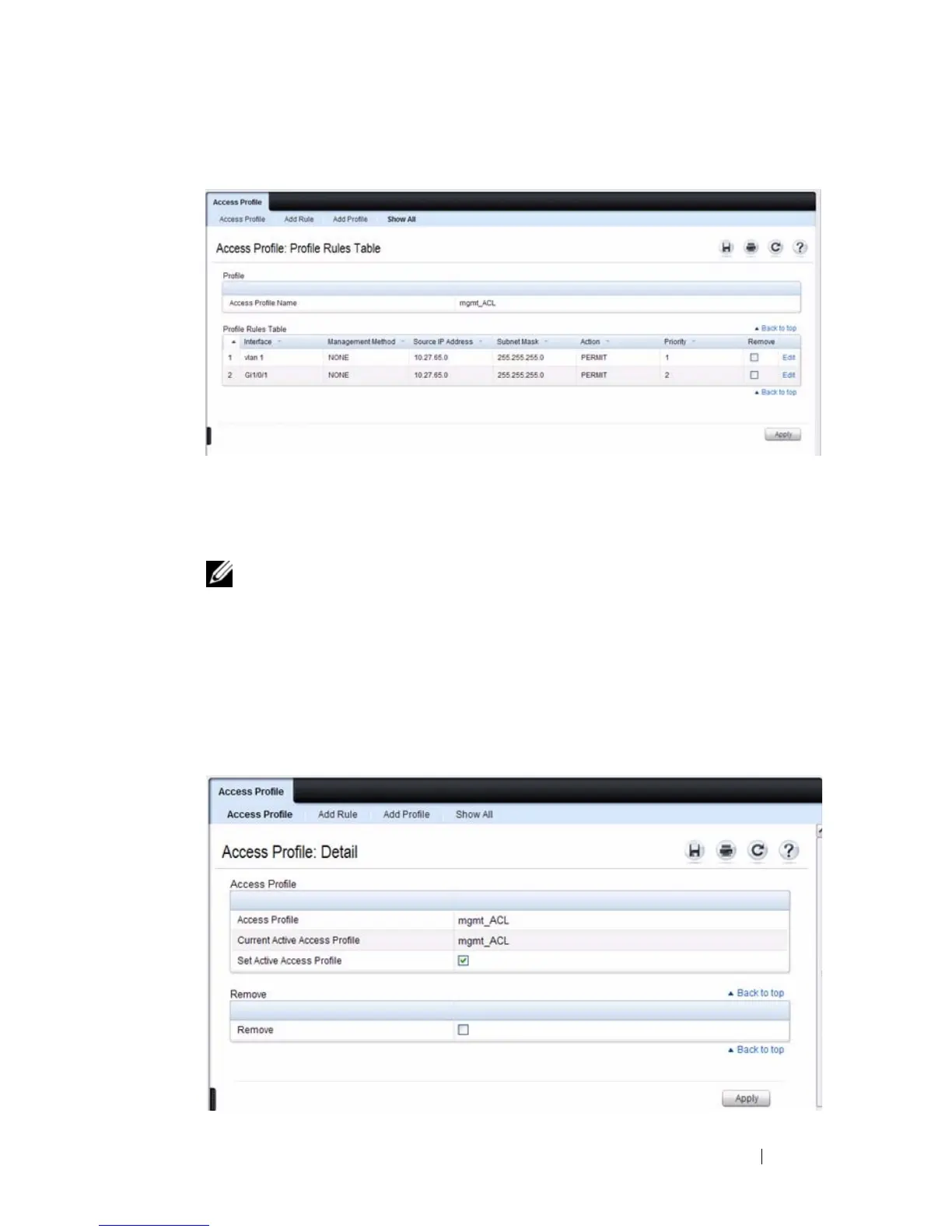

Figure 9-6. View Access Profile Information
8
Click
Access Profile
to return to the main page for the feature.
9
To activate the profile, select the
Set Active Access Profile
option, and
then click
Apply
.
In the Figure 9-7, mgmt_ACL is active, and the configured rules are being
enforced.
Figure 9-7. Activate the Access Profile
NOTE: The switch enforces the profile rules only if the profile is active. If an
access profile is not activated, the device can be accessed by any host and
on any interface.
