182 Controlling Management Access
Figure 9-5 shows the configuration of an additional rule that allows
management access to a host in the 10.27.65.0/24 subnet that is connected
to Port 1. The rule priority is 2. This rule might be necessary if Port 1 is not
a member of VLAN 1.

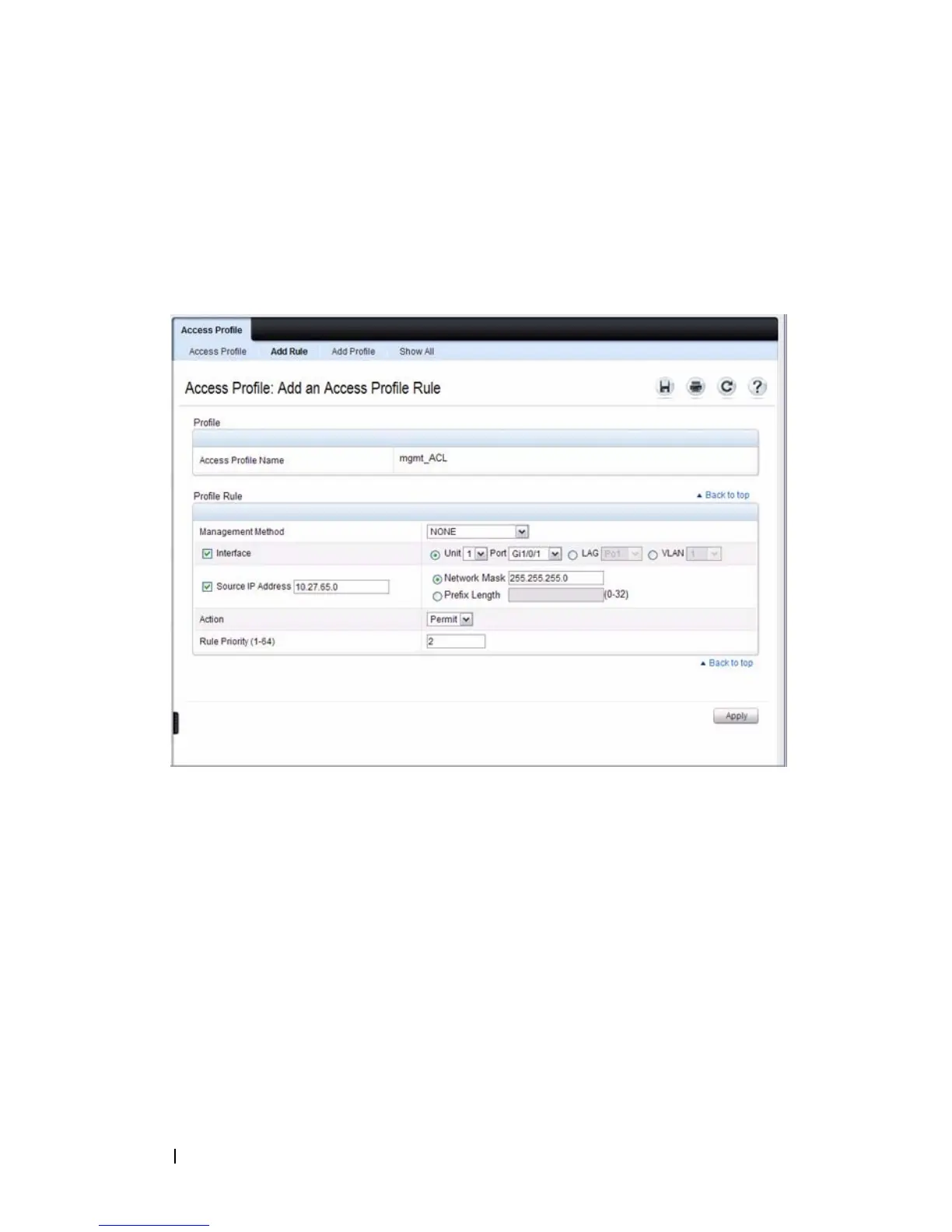

Figure 9-5. Add an Access Profile Rule
7
Click
Show All
to view information about the Access Profile and its rules.
