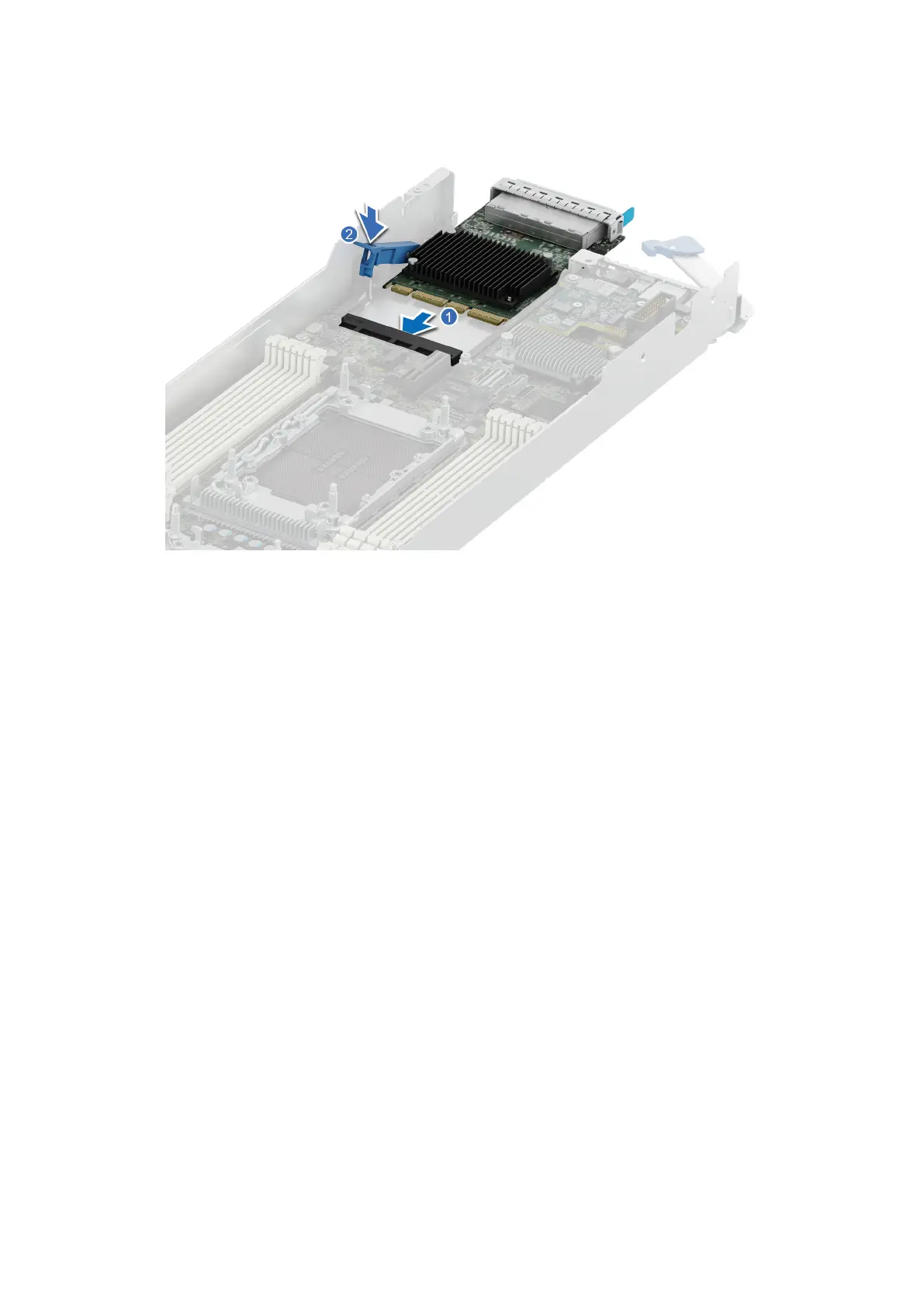

Figure 92. Installing an OCP card
Next steps
1. Install the rubber tube cover. See install the liquid cooling cold plate with leak sensor step 6 to install the rubber tube cover.
2. Install the expansion card riser 1.
3. Follow the procedure listed in After working inside your system.
Installing the OCP card filler
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 1.
4. Remove the rubber tube cover. See remove the liquid cooling cold plate with leak sensor step 1 to remove the rubber tube
cover.
Steps
Align and insert the OCP filler firmly until it is fully seated.
116
Installing and removing system components
