Installing the LOM
Prerequisites
NOTE: You must install an expansion card filler bracket over an empty expansion slot to maintain Federal Communications
Commission (FCC) certification of the system. The brackets also keep dust and dirt out of the system and aid in proper
cooling and airflow inside the system.
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the expansion card riser 1.
Steps
1. Align the screw holes on the LOM with the screw holes on the chassis.
2. Lower the LOM firmly until the LOM card is fully seated in the slot.
3. Using a Phillips 2 screwdriver, tighten the screws that secure the LOM card on to the system board.

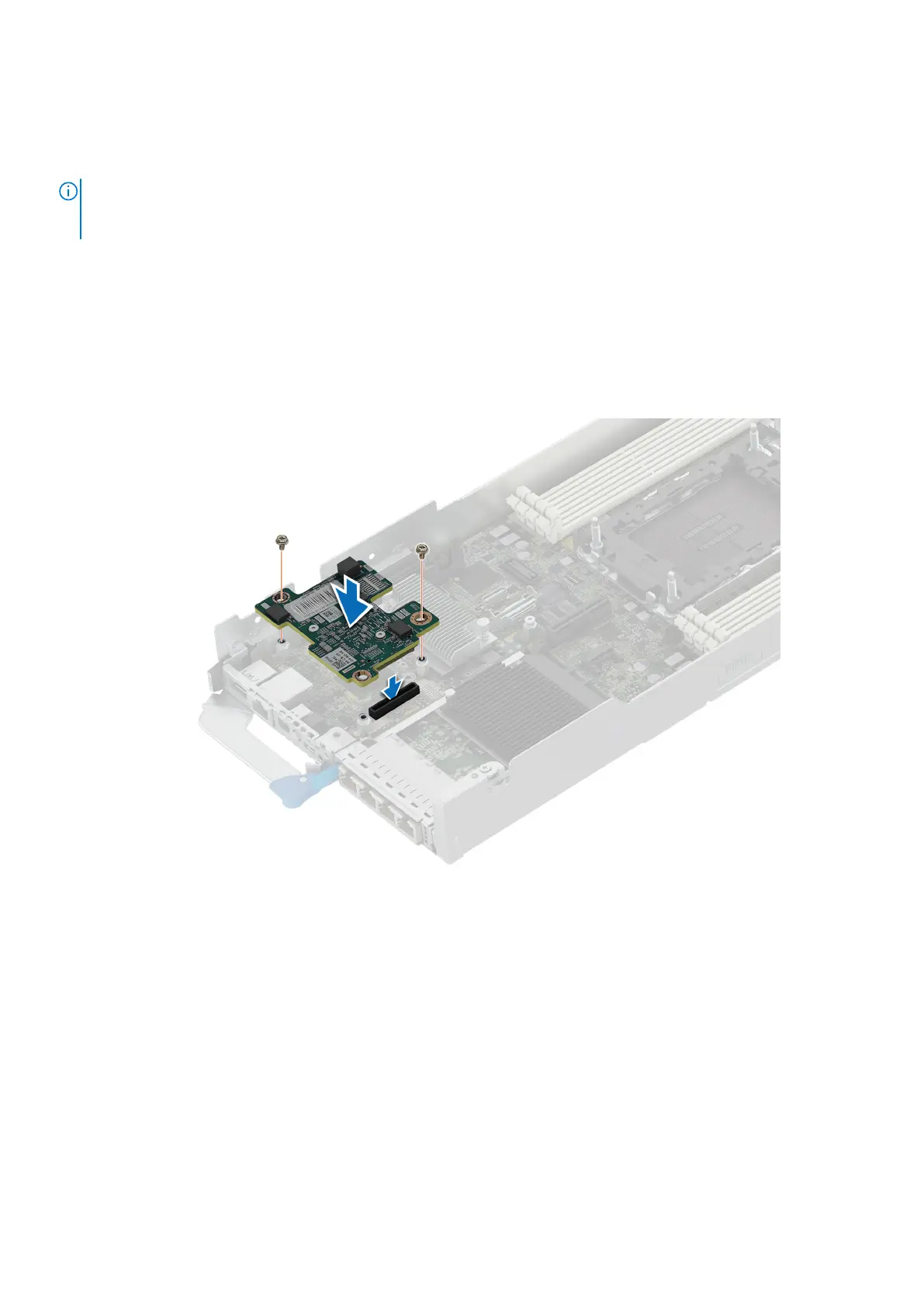

Figure 53. Installing the LOM
Next steps
1. Install the expansion card riser 1.
2. Follow the procedure listed in After working inside your system.
M.2 SSD module
Removing the M.2 riser
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
