Dell PowerEdge C6620 - System Configurations - Rear View for Poweredge C6620

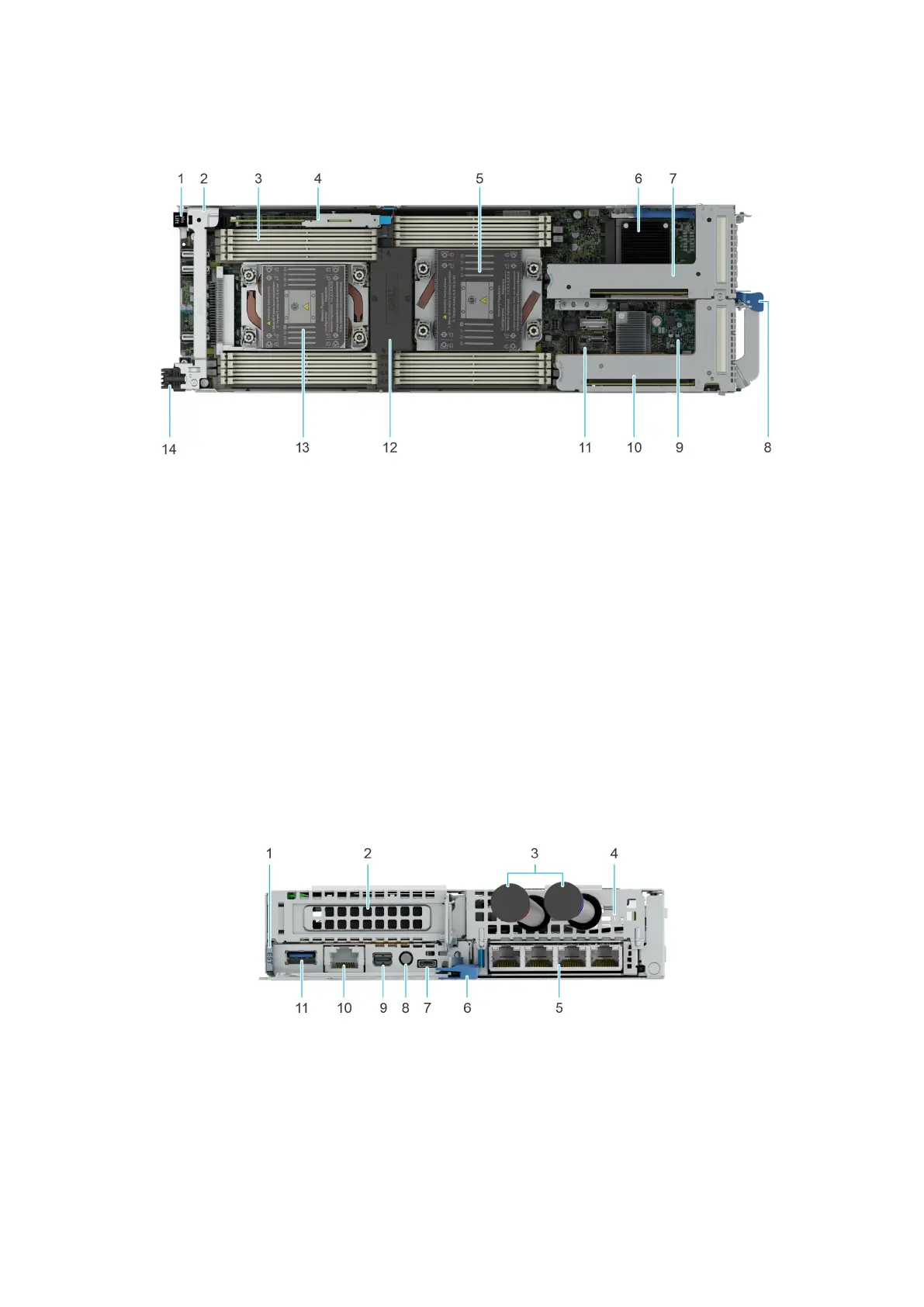

Figure 2. Inside view of the PowerEdge C6620 sled (air cooling configuration)
1.
Power connector 2. Support bracket
3. Memory module sockets 4. BOSS-N1: HWRAID 1, 2 x M.2 SSDs
5. Processor 1 and heat sink module 6. OCP 3.0 card
7. Expansion card riser (R2A/R2B) 8. Lock release for sled handle
9. LOM 10. Expansion card riser (R1A/R1B)
11. System board 12. Air shroud
13. Processor 2 and heat sink module 14. EXAMAX connector
System configurations - rear view for PowerEdge
C6620
Figure 3. Rear view or the system (liquid cooling configuration)
PowerEdge C6620 system configurations and features
