Dell PowerEdge C6620 - Page 57

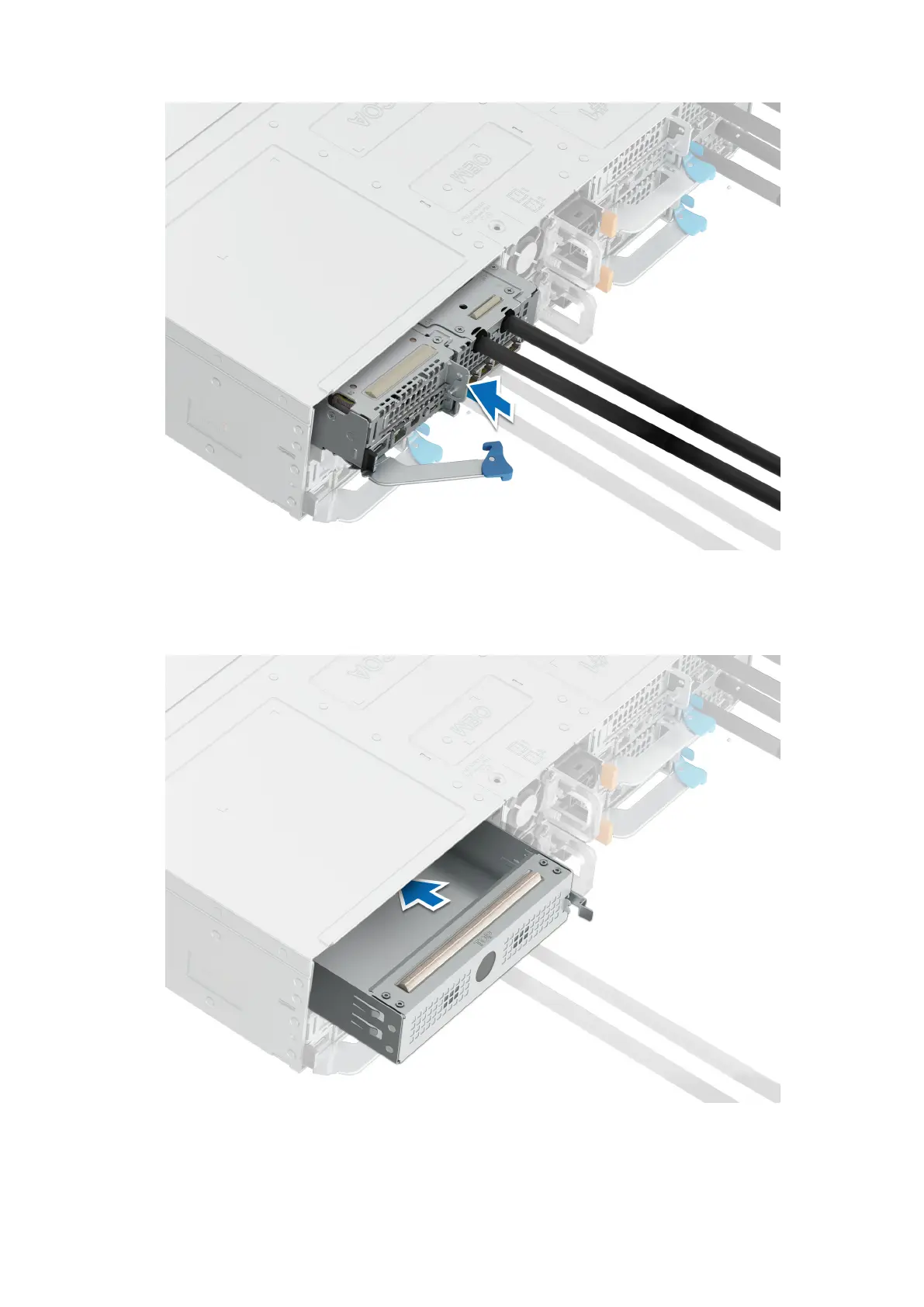

Figure 25. Insert the sled until the edge of the sled handle touches the edge of the enclosure chassis
5. Push inward on the handle until it rotates and locks the sled into place.
6. To install a sled blank, slide it into the enclosure until the retention latch locks it into place.
Figure 26. Installing a sled blank
Installing and removing system components
57
