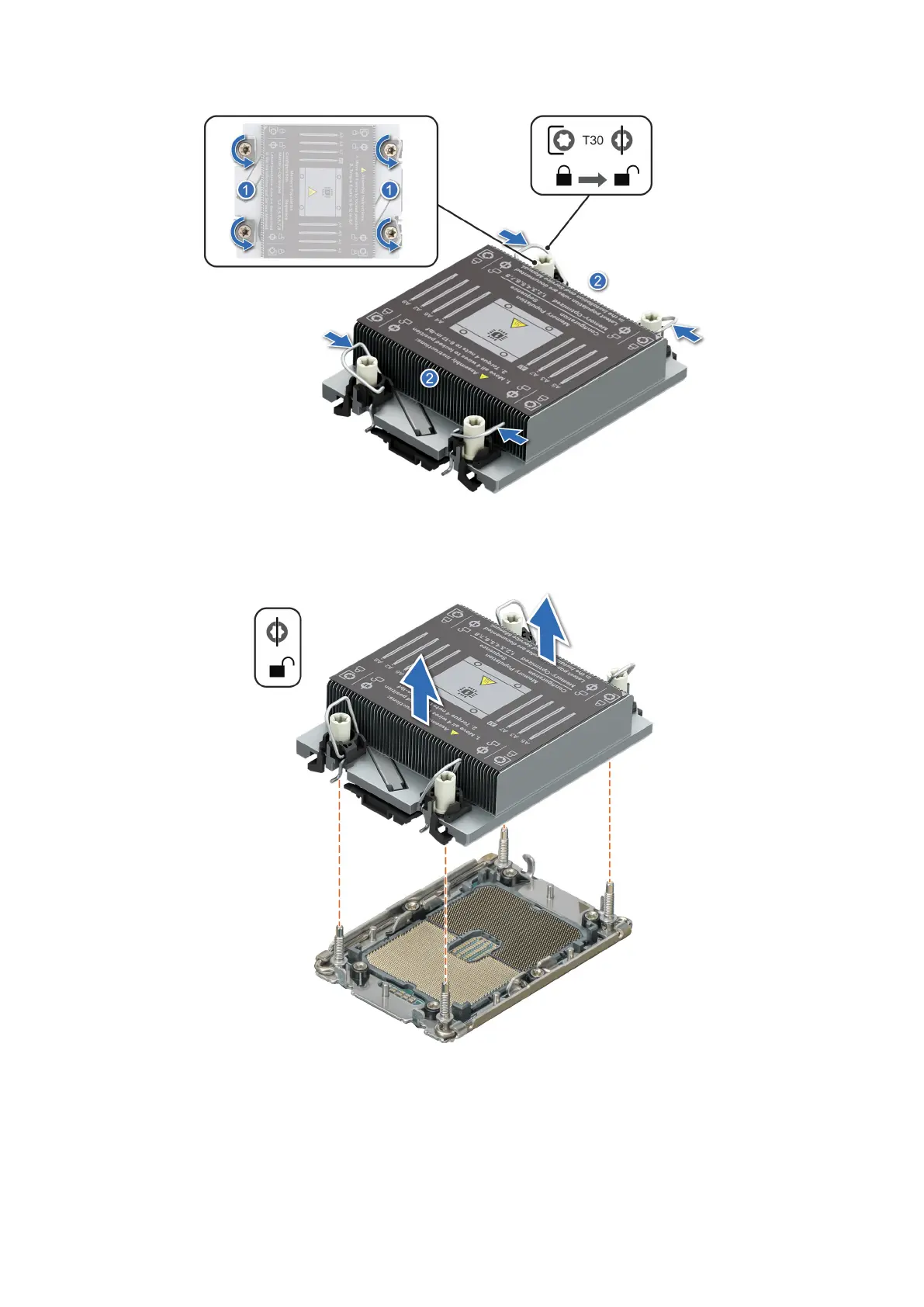

Figure 61. Loosening the captive nuts and set the Anti-Tilt wires to the unlocked position
3. Lift the processor and heat sink module (PHM) from the system and set the PHM aside with the processor side facing up.
Figure 62. Removing a processor and heat sink module
Next steps
Remove the processor from the processor and heat sink module.
