Table 1. Features available on the front of the system (continued)
Item Ports, panels, and
slots
Icon Description
2 Drive N/A Enables you to install drives that are supported on your system.
3 Right control panel N/A Contains the power button, VGA port, USB port, iDRAC Direct
(Micro-AB USB) port and the iDRAC Direct status LED.
4 Information tag N/A The Express Service Tag is a slide-out label panel that contains
system information such as Service Tag, NIC, MAC address, and so
on. If you have opted for the secure default access to iDRAC, the
Information tag will also contain the iDRAC secure default password.

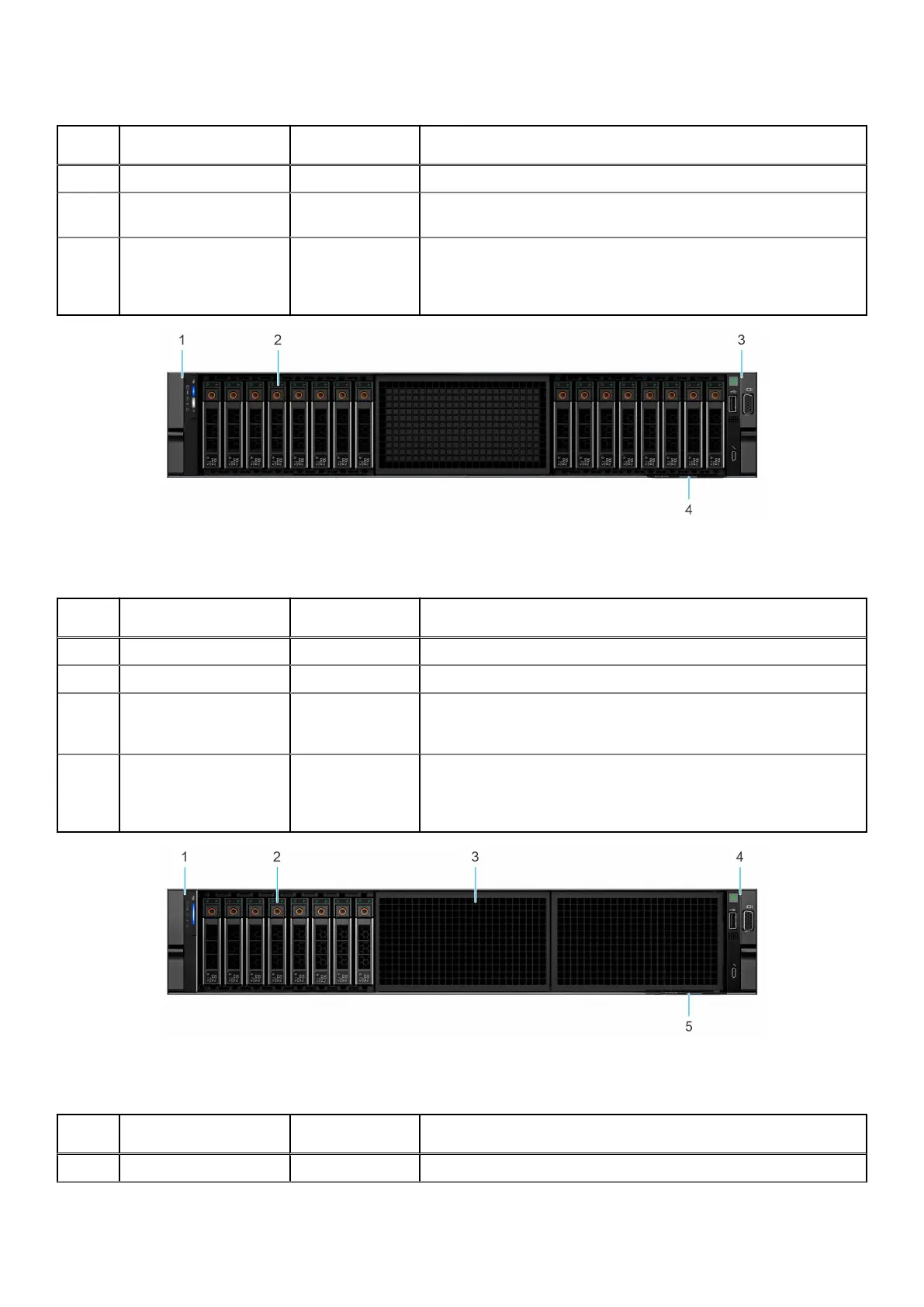

Figure 2. Front view of 16 x 2.5-inch drive system
Table 2. Features available on the front of 16 x 2.5-inch drive system
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A Contains the system health, system ID, and the status LED indicator.
2 Drive N/A Enables you to install drives that are supported on your system.
3 Right control panel N/A Contains the power button with integrated power LED, 1 x VGA port,
1 x 2.0 USB port, iDRAC Direct (Micro-AB USB) port, and the iDRAC
Direct status LED.
4 Information tag N/A The Express Service Tag is a slide-out label panel that contains
system information such as Service Tag, NIC, MAC address, and so
on. If you have opted for the secure default access to iDRAC, the
Information tag also contain the iDRAC secure default password.
Figure 3. Front view of 8 x 2.5-inch drive system
Table 3. Features available on the front of the system
Item Ports, panels, and
slots
Icon Description
1 Left control panel N/A Contains the system health, system ID and the status LED indicator.
10 System overview
