Dell PowerEdge R7625 - Installing the Full Length Expansion Card Risers

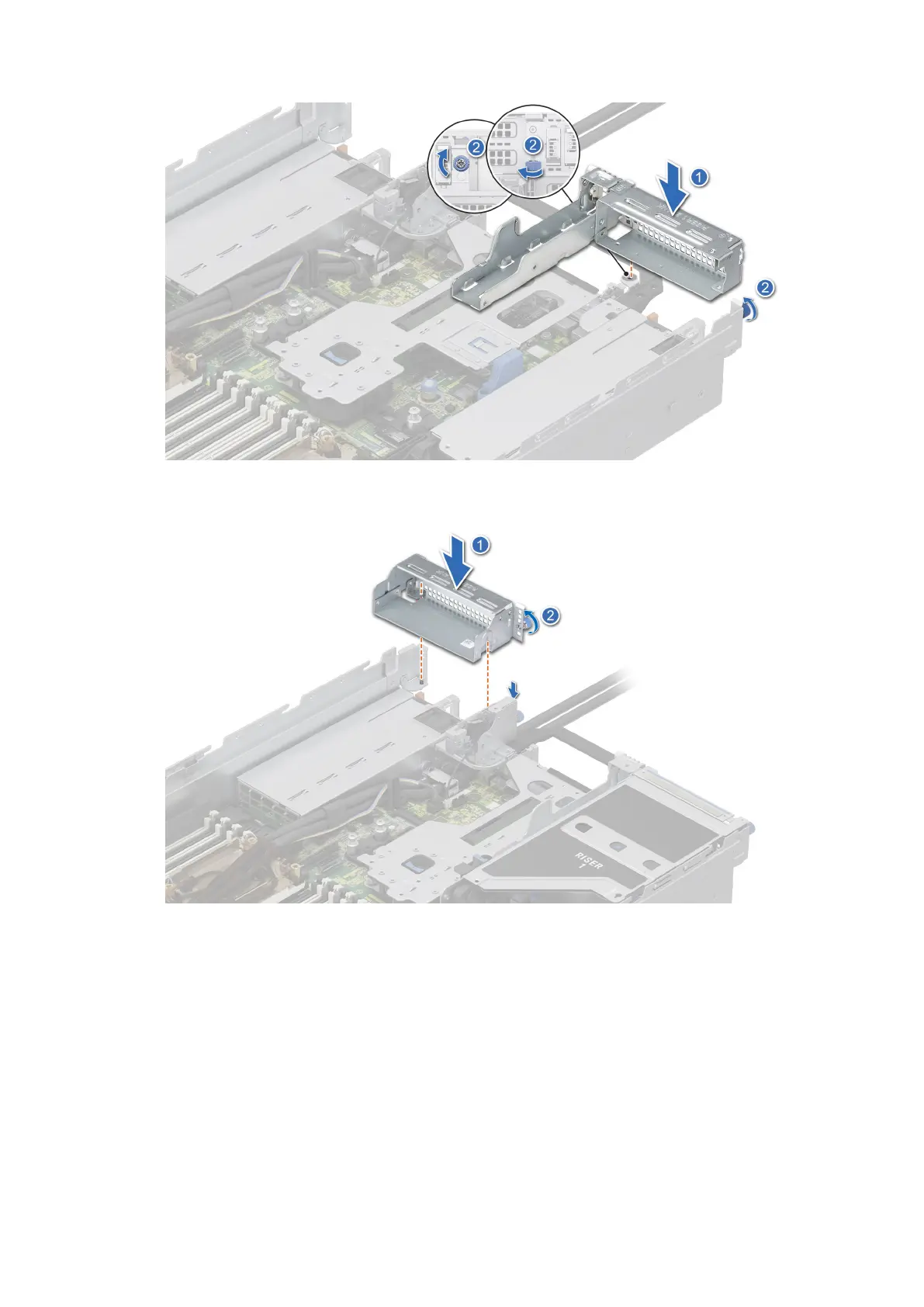

Figure 154. Installing the Riser 1 blank
Figure 155. Installing the Riser 4 blank
Next steps
1. Replace the full length expansion card riser.
Installing the full length expansion card risers
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installing full length expansion card riser for the first time, remove air shroud and replace it with GPU air shroud.
196
Installing and removing system components
