NOTE: Press the retention frame while tightening the screws to avoid tilting of the processor cover out of the
processor socket.

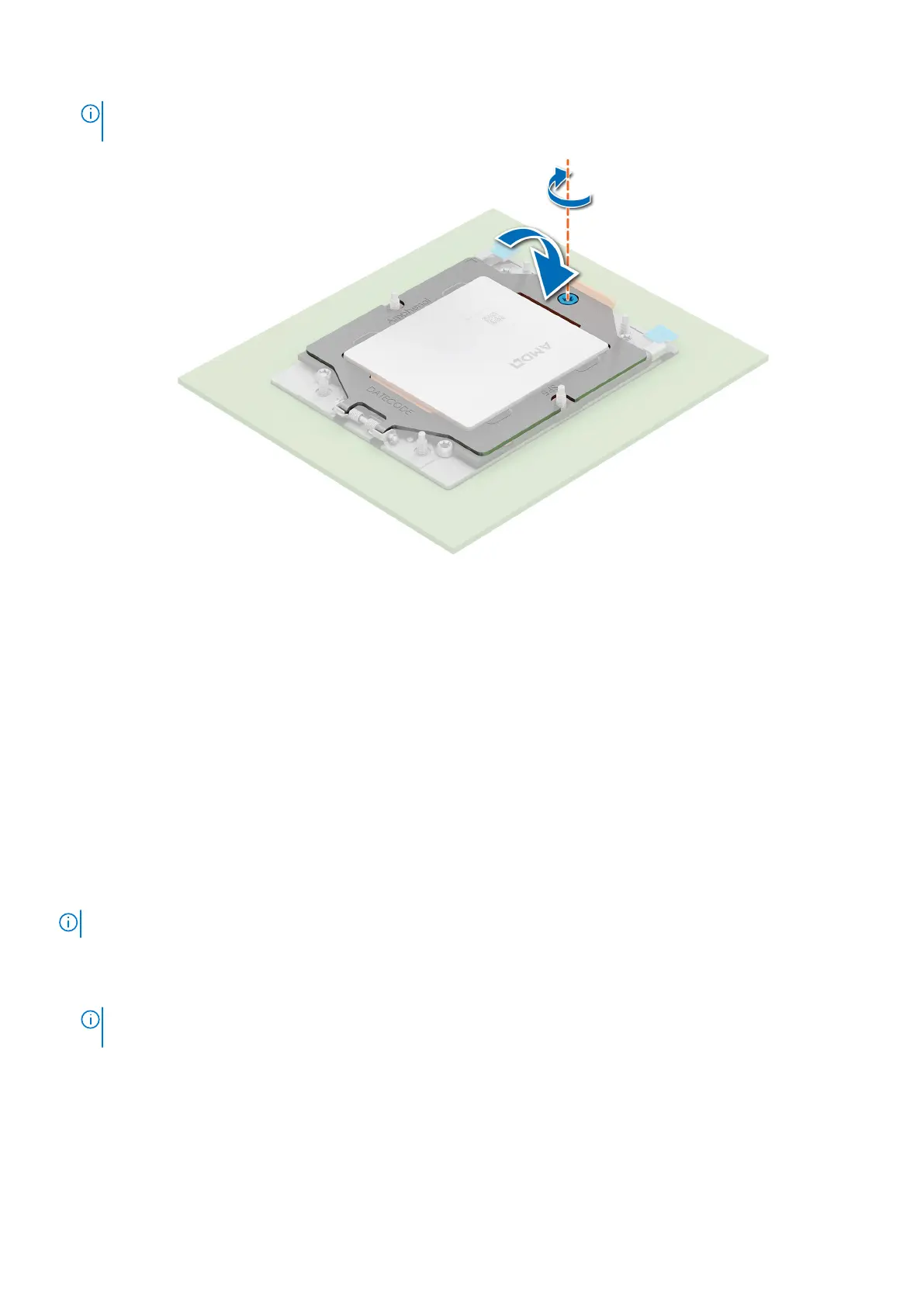

Figure 120. Securing the retention frame
Next steps
1. Install the heat sink.
2. Follow the procedure listed in After working inside your system.
Installing the heat sink
Prerequisites
Never uninstall the heat sink from a processor unless you intend to replace the processor or system board. The heat sink is
necessary to maintain proper thermal conditions.
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If installed, remove the air shroud.
4. If installed, remove the processor dust cover.
NOTE: The procedure to install standard and L-type heat sink is similar.
Steps
1. If you are using an existing heat sink, remove the thermal grease on the heat sink by using a clean lint-free cloth.
NOTE:
For a new heat sink, the thermal paste is pre-applied to the heat sink. Remove the protective cover, and install
the heat sink.
2. Use the thermal grease syringe included with your processor kit to apply the grease in a thin spiral on the top of the
processor.
