Dell PowerEdge R7625 - Installing a GPU

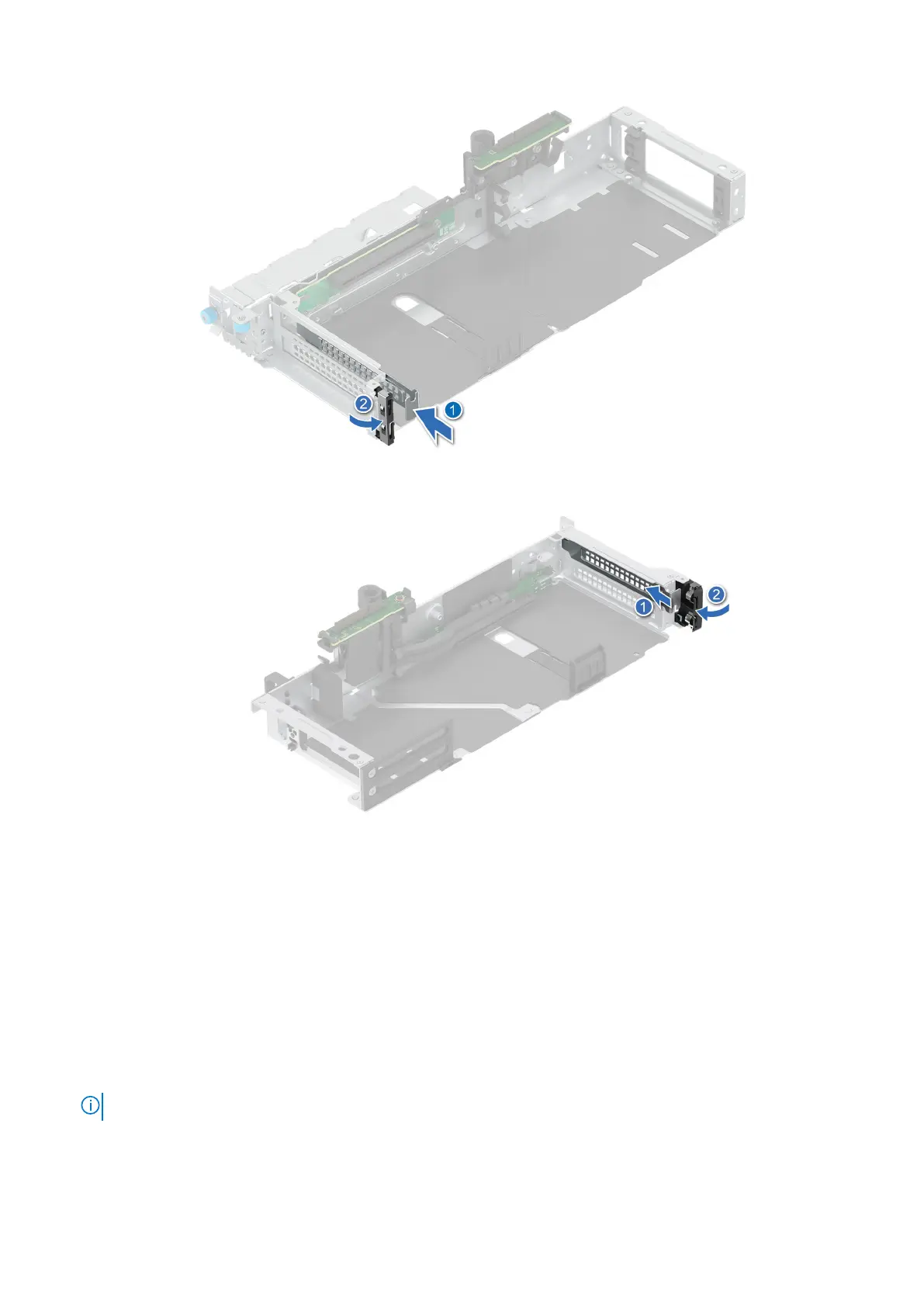

Figure 162. Installing the metal filler bracket (Riser 1)
Figure 163. Installing the metal filler bracket (Riser 4)
Next steps
1. Replace the GPU.
Installing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. If installing a new expansion card, unpack it and prepare the card for installation.
NOTE: For instructions, see the documentation accompanying the card.
4. Remove the GPU air shroud top cover.
5. Remove the GPU air shroud filler.
6. Remove the full length expansion card riser.
Installing and removing system components
201
