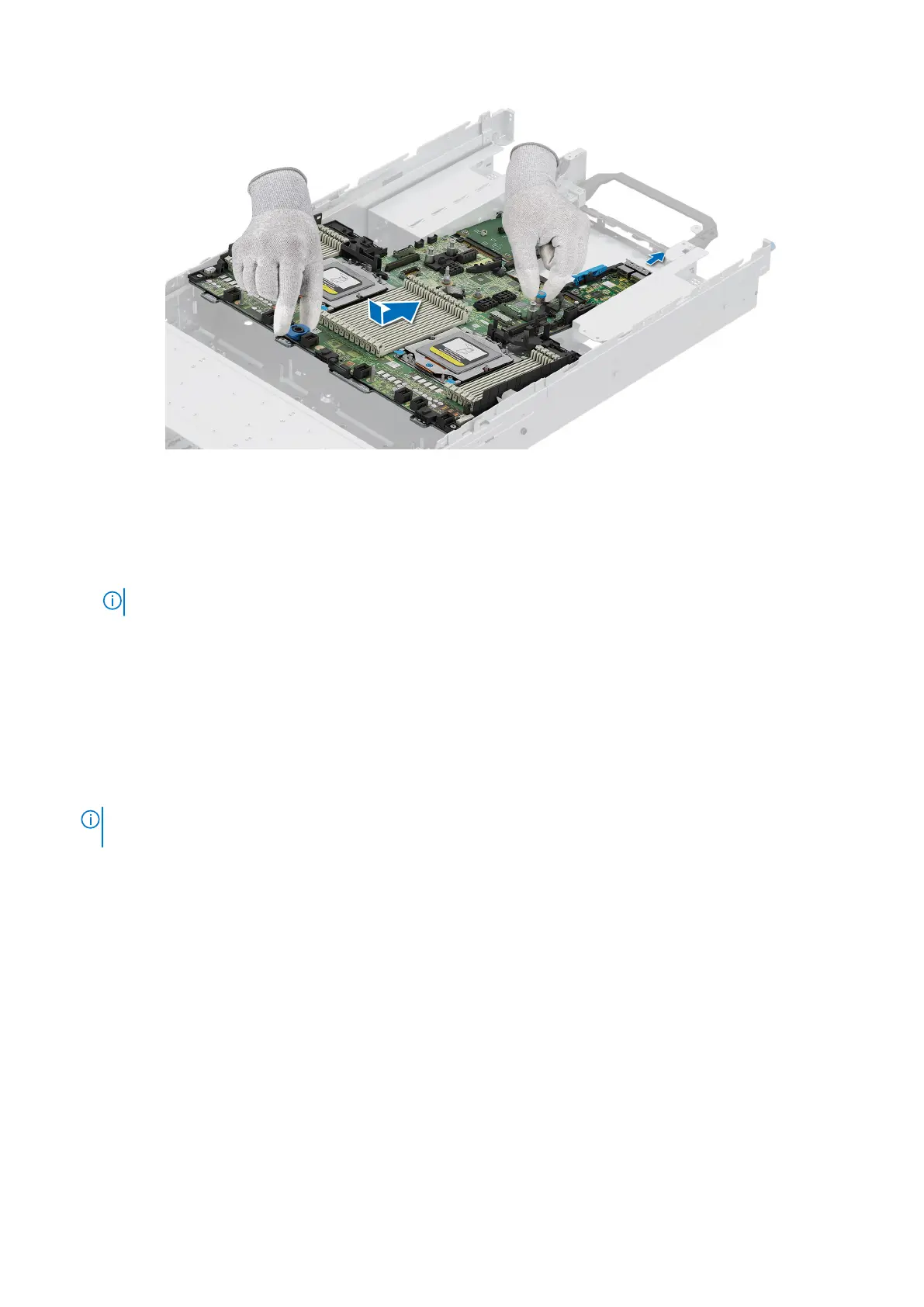

Figure 198. Installing the system board
Next steps
1. Replace the following components:
a. Trusted Platform Module (TPM).
NOTE: The TPM Module must be replaced only while installing new system board.
b. Internal USB card (if installed).
c. Power supply units (PSU).
d. OCP card (if installed).
e. Processor.
f. Heat sink.
g. Memory modules.
h. Side wall bracket.
i. Cooling fan cage assembly.
j. Air shroud (if installed).
2. Reconnect all cables to the system board.
NOTE:
Ensure that the cables inside the system are routed along the chassis wall and secured using the cable securing
bracket.
3. Ensure that you perform the following steps:
a. Use the Easy Restore feature to restore the Service Tag. See the Restoring the system by using the Easy Restore
feature section.
b. If the service tag is not backed up in the backup flash device, enter the system service tag manually. See the Manually
update the Service Tag by using System Setup section.
c. Update the BIOS and iDRAC versions. Reenable the Trusted Platform Module (TPM). See the Upgrading the Trusted
Platform Module section.
Restoring Service Tag using Easy Restore
The Easy Restore feature allows you to restore your Service Tag, iDRAC license, UEFI configuration, and the system
configuration data after replacing the system board. All data is backed up in a backup Flash drive device automatically. If
BIOS detects a new system board, and the Service Tag in the backup Flash drive device is different, BIOS prompts the user to
restore the backup information.
Below is a list of options available:
1. Restore the service tag, license, and diagnostics information, press Y
2. Navigate to the Lifecycle Controller based restore options, press N
