Cable routing

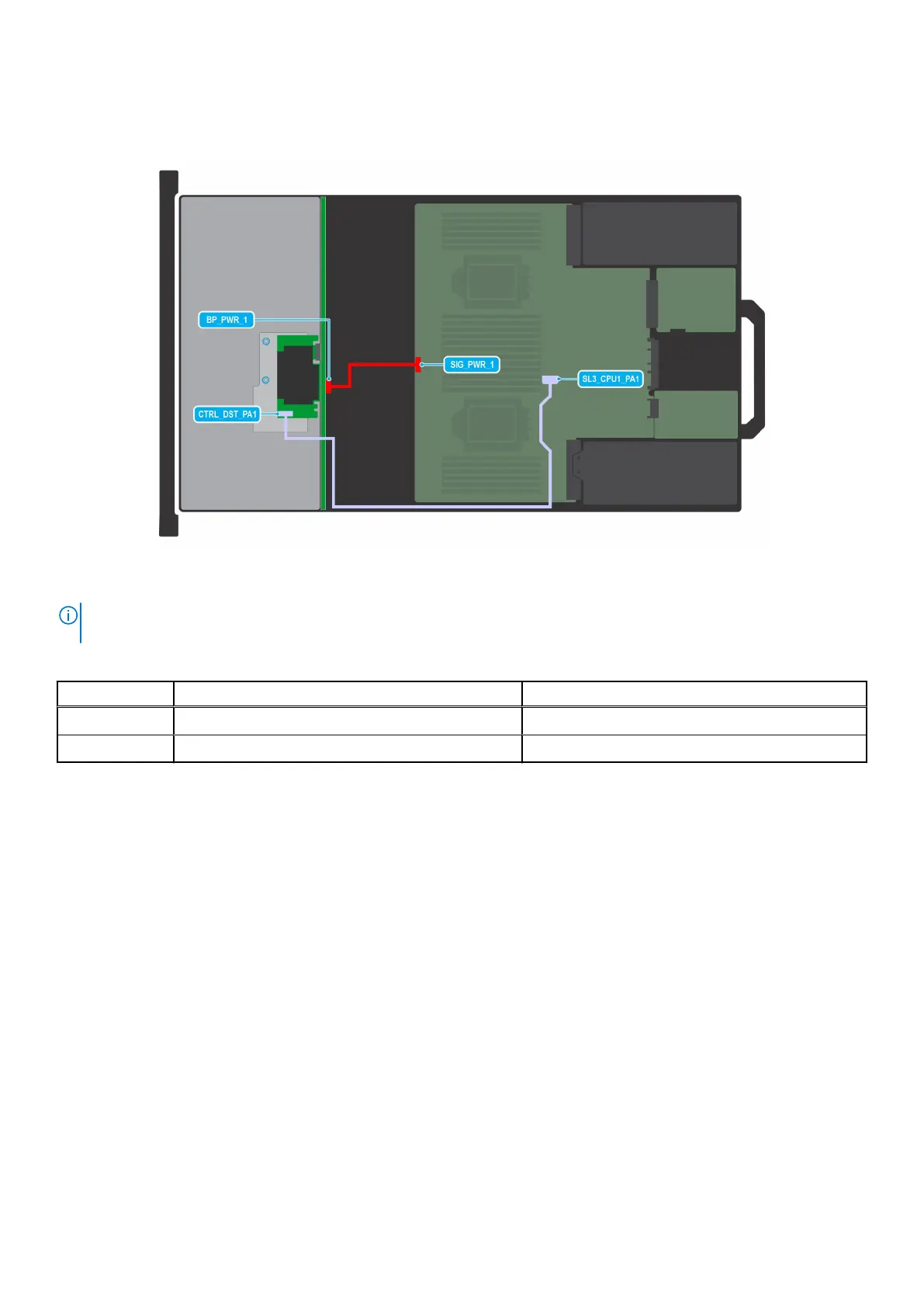

Figure 75. C-1: 8 x 3.5-inch SAS3/SATA RAID (w/ FPERC11)
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 73. 8 x 3.5-inch SAS3/SATA RAID (w/ FPERC11)
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 SL3_CPU1_PA1 (signal connector on system board) CTRL_DST_PA1 (fPERC input connector)
108 Installing and removing system components
