Dell PowerEdge R7625 Service Manual

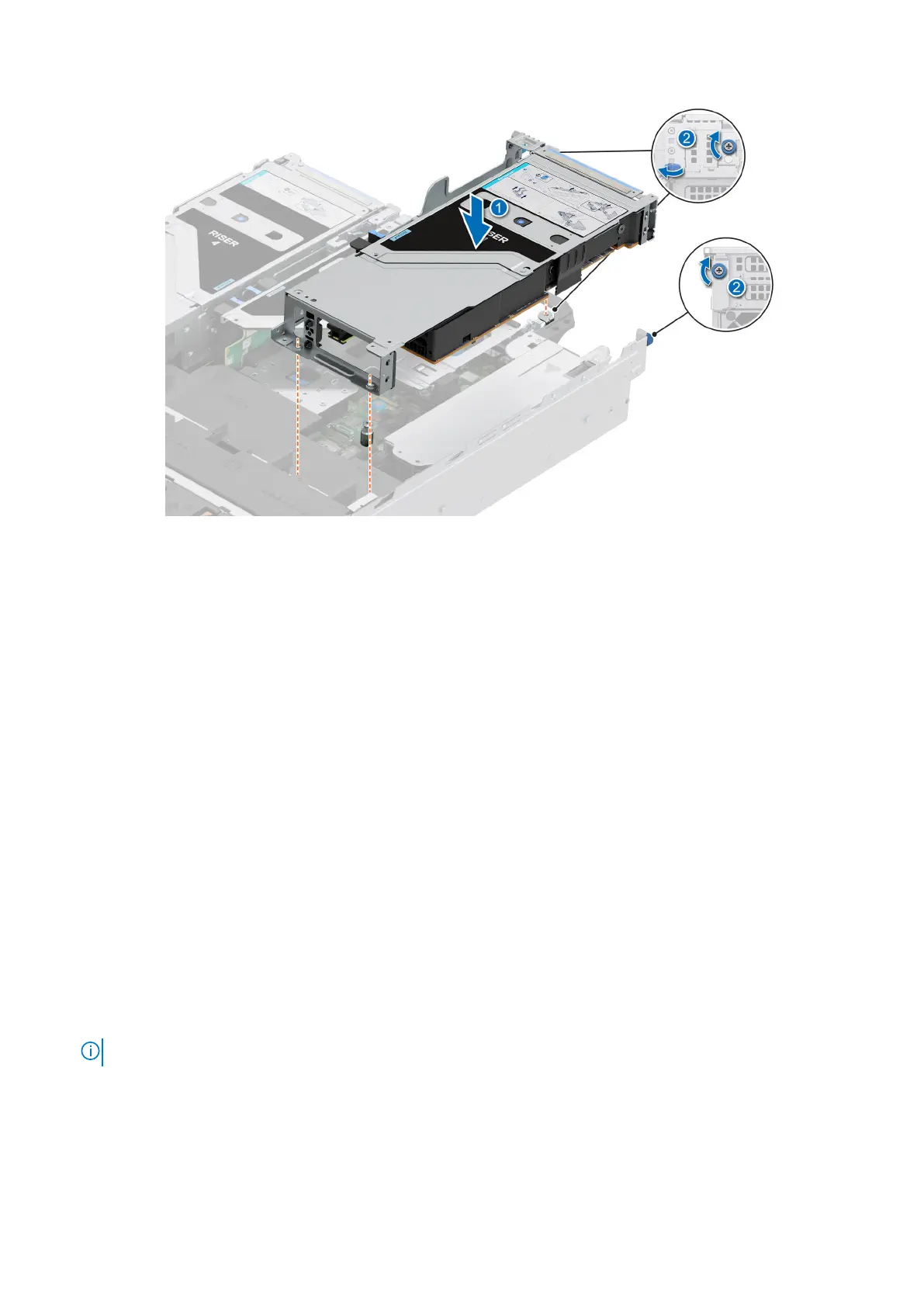

Figure 159. Installing the expansion card riser (Riser 1)
Next steps
1. If applicable, connect the cables to the expansion card or system board.
2. Install the GPU air shroud top cover.
3. Follow the procedure listed in After working inside your system.
4. Install any device drivers required for the card as described in the documentation for the card.
Removing a GPU
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. If applicable, disconnect the cables from the expansion card.
4. Remove the GPU air shroud top cover.
5. Remove the full length expansion card riser.
Steps
1. To remove the GPU from Riser 1:
a. Tilt the expansion card holder latch on the riser.
b. Press the tab, and pull the card holder from the riser.
c. Hold the GPU card by the edges and pull the card from the riser.
d. Disconnect the GPU power cable from the GPU card.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
Installing and removing system components 199

Dell PowerEdge R7625 Specifications

General

Maximum Processors	2
Cores per Processor	Up to 96
Memory Type	DDR5
Maximum Memory	6TB
RAID Support	Yes
Form Factor	2U Rack
Processor	AMD EPYC 9004 Series
Memory Slots	24
Storage	Up to 24 x 2.5" drives
Storage Controller	PERC H755, H755N
RAID Controllers	PERC H755, H755N, H355
GPU Support	Up to 3 double-width GPUs
Network Options	1 GbE, 10 GbE, 25 GbE, 100 GbE options available
Network Controller	Broadcom 5720, Intel X550, Mellanox ConnectX-6
PCIe Slots	Up to 8
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Power Supply	800 W Platinum, 1100 W Titanium, 1400 W Platinum, 1800 W Platinum
